Converge Pro 2 AEC-capable Mixers

CONVERGE Pro 2 is the industry's most advanced professional audio DSP platform for conferencing applications. It outperforms in any size room, any audio environment, any application.

World-class echo cancellation, adaptive noise reduction and advanced feedback suppression

Single-cable connectivity to peripherals, the ability to stack devices, and intuitive configuration and control software

Key Highlights

  • Completely new and powerful hardware architecture and software platform
  • Different models available for conferencing or sound reinforcement applications
  • Scalable system from 4 to 144 inputs
  • Choice of models with VoIP, or telephone connection both with DanteTM option for precisely the solution you need

Applications

  • VoIP/POTS conferencing
  • PC-based conferencing & Unified Communications
  • Microsoft Skype® for Business audio conferencing
  • DanteTM for audio networking

Environments

  • Boardrooms
  • Conference rooms
  • Huddle rooms
  • Training rooms
  • Lecture halls
  • Courtrooms
  • Auditoriums
  • Telemedicine facilities

World-class echo cancellation, adaptive noise reduction and advanced feedback suppression

Single-cable connectivity to peripherals, the ability to stack devices, and intuitive configuration and control software

Powerful Architecture

+ 12 Mic/Line inputs with AEC

+ Built-in VoIP: 5 lines

+ Built-in Skype for Business Client

+ Built-in Telco with ClearEffect processing

+ Built-in USB for PC-based conferencing

+ Built-in Dante for networked audio

+ Reduced footprint and power consumption

Scalable Connectivity

+ Standalone and daisy-chained system

+ Stack units for up to 144 Mic/Line inputs

+ Expansion bus “C-Link” with 64 channels

+ “P-Link” bus to connect peripheral devices

Configuration & Management

+ New CONSOLE® software

+ Auto-discovery of devices

+ MatrixView™ for entire system

+ FlowView™ for visualized audio signal paths

+ System monitoring and troubleshooting

Audio Signal Processing

+ Next-gen Acoustic Echo Cancellation processing

+ Distributed Echo Cancellation® available on every mic/line input

+ Noise Cancellation with Adaptive-Ambience

+ Acoustic Intelligence with faster convergence

+ DARE™ feedback elimination

+ Advanced microphone gating

Any Application

+ VoIP/POTS conferencing

+ PC-based conferencing & Unified Communications

+ Microsoft Skype for Business audio conferencing

+ Sound Reinforcement applications

+ Dante™ for audio networking

Flexible Control Options

+ Dialer app for Windows, Mac, iOS, and Android

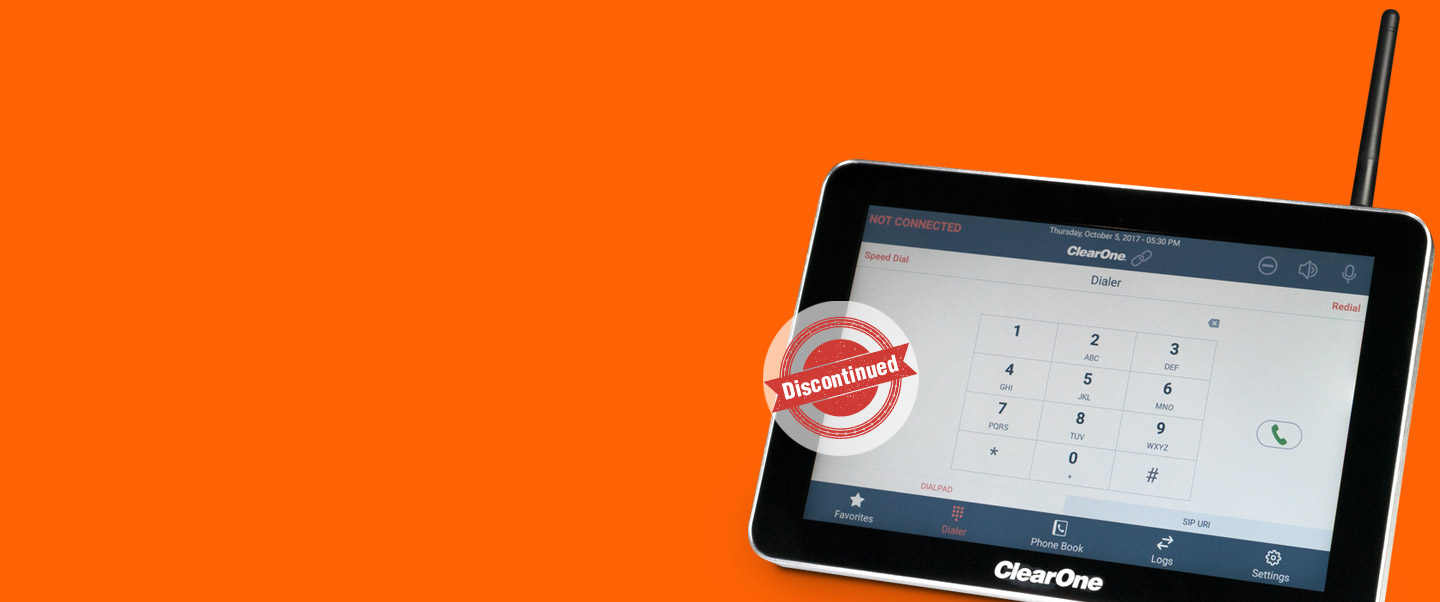

+ Touch Panel Controller with tabletop and wall mount options

+ 3rd-party control modules

World-class echo cancellation, adaptive noise reduction and advanced feedback suppression

Single-cable connectivity to peripherals, the ability to stack devices, and intuitive configuration and control software

Mic/Line Inputs & Outputs

  • Inputs: Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Outputs: Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Frequency Response: 20Hz – 22kHz @ +4dBu, +/- 0.5dBu
  • EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu
  • THD + N (Total Harmonic Distortion + Noise): 20Hz – 22kHz @ +4dBu, line level, 0.006% 20Hz – 22kHz @ -56dBu, mic level, <0.04%
  • Dynamic Range: 20Hz – 20kHz @ 0dB, >105dB
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
  • Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
  • Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
  • Maximum Input Level: -65dBu to 20dBu
  • Phantom Power: 48V, Impedance 6.81kΩ
  • Output Impedance: Balanced (line to ground), 95Ω, 1%
  • Output Level: 0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)

USB Audio

  • Port Type: USB-B connector
  • Audio: Digital Audio, 2 x 2 bidirectional channels
  • Sample Rate: 48kHz
  • Sample Bit Depth: 24-Bit
  • Compatible: USB 2.0 USB 3.0

Telephone

  • Port Type: RJ11
  • Frequency Response: Mic/Line Input to Telephone Out: 250Hz – 3.4kHz , +/- 2dB, 4dBu ,Telephone In to Mic/Line Out: 250Hz – 3.4kHz, +/- 2dB, -15dBu
  • THD + N: Mic/Line Input to Telephone Out: <0.1% @ 4dBu Telephone In to Mic/Line Out: <0.3% @ -15dBu
  • Dynamic Range: Mic/Line Input to Telephone Out: >67dBu Telephone In to Mic/Line Out: >87dBu
  • REN: Ringer Equivalent Number 0.2
  • Transhybrid Balance: 30dB (1kHz, all AC terminations)

VoIP

  • Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
  • Codec: G.711 uLaw G.711 ALaw G.722
  • Skype for Business (S4B): • Microsoft Skype for Business support (1 client) • Choose either regular VoIP or S4B through configuration

Ethernet

  • Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
  • IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

Dante™ Audio

  • Port Type: RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports
  • Audio: Digital Audio, 16 x 16 bidirectional channels
  • Sample Rate: 48kHz / 96kHz
  • Sample Bit Depth: 24-Bit

Amplifier Output (Applicable to 48T SKU)

  • Speaker Output Port: Dual binding posts
  • Audio: 2 Channels
  • Output Power: 10W Max, 8Ω load
  • Frequency Response: 20Hz – 22kHz @ +10dBu, +/- 0.5dBu
  • THD + N: 20Hz – 22kHz @ +10dBu, 1W, <0.3%
  • Dynamic Range: 20Hz – 22kHz @ 20dB, >102dB, with 20kHz digital low pass filter
  • Crosstalk: Channel to Channel, stimulus at 20dBu, 10W output to receptor 8Ω load, 20Hz – 22kHz, < -70dB

Dimension & Weight

  • RU size: 1 RU
  • Width x Depth x Height: 1. Without rack-ears: 17 x 10.73 x 1.72in or 43.2 x 27.3 x 4.4cm
  • 2. With rack-ears: 19 x 10.73 x 1.72” or 48.3 x 27.3 x 4.4cm
  • Unit Weight: 9.3 lbs (Approximately)
  • Shipping Weight: 13.8 lbs (Approximately)

Package (as applicable based on SKUs)

  • Power Cord: 6 Ft (1.8M), Grounded, Qty 1
  • Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
  • Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
  • GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
  • C-Link Cable: RJ-45 To RJ-45 Cable, 18 Inches (0.45M), Qty 1
  • Telephone cable: 12 Ft (3.6M), Qty 1
  • VoIP Cable: RJ-45 To RJ-45, 7 Ft (2M), Qty 1
  • USB Cable: USB Type A to Type B, 6 Ft (1.8M), Qty 1 Rack Ears: Pre-installed, Qty 2
  • Screw/Washer Kit: Rack Decor, Qty 4

C-Link Expansion Bus

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • C-Link In & Out: Proprietary Expansion Bus
  • Audio: 64 Expansion channels
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 150 Ft (200M)

P-Link Peripheral Bus

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In: P-Link In Port, PoE 802.3af Mode B, Midspan, Power on “spare pairs” 4,5 and 7,8 , Input voltage range: 48V to 56V
  • Audio: Up to 3 Beamforming Micropphone Array 2 (BFM2) units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 200 Ft (45M)
  • Long Distance P-Link: • Increases P-Link distance from 200 Ft to 650 Ft
  • 650 Ft (200M) maximum cable distance between any two units
  • Cat6, 550 MHz, 23 AWG, solid conductor cable
  • Do not use Copper Clad Aluminum (CCA) cable
  • Available only for BFM2 peripheral units
  • 48V PoE Midspan Mode B power injector for 1 BFM2 unit
  • 56V PoE Midspan Mode B power injector for 3 BFM2 units

RS232

  • Port Type: DB9 Female
  • Settings: 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
  • Support: Serial commands

GPIO

  • Port Type: 5.08mm Green color Phoenix/Euroblock type male header
  • Support: Control, Status, Variable Voltage Control
  • Power Pin: 5V DC @ 350mA Power Source
  • Pin 1 to 4: Open Collector Outputs: 40VDC @ 250mA
  • Active Outputs (Source/Sink): 5VDC @25mA
  • Logic Inputs: 40.2kΩ pull up
  • Variable Voltage Control Inputs: 5VDC max
  • Ground Pin: GND

USB Control

  • Port Type: USB-B connector
  • Location: Front Pane
  • Compatible: USB 2.0, USB 3.0

LEDs

  • Location: Front Panel
  • Status LED: Off: Unit still initializing
  • Blue - Fast Blinking: Stack Syncing in progress
  • Blue - Slow Blinking: Unit not configured
  • Blue - Solid: Configured unit
  • Red - Fast Blinking: Stack Sync error
  • Locate LED: Blue - Blinking: Unit “Locate” command received
  • Power LED: Blue - Solid: Unit is powered on

Touch Sensor

  • Sensor Type: Capacitive Touch Button
  • Location: Front Panel

Power & Thermal

  • Port Type: AC Inlet
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14°F/-10°C to 104°F/40°C Ambient Temperature

Part Numbers

  • Part Number : 910-3200-001, Product : CONVERGE Pro 2 128
  • Part Number : 910-3200-001-D, Product : CONVERGE Pro 2 128D
  • Part Number : 910-3200-002, Product : CONVERGE Pro 2 128T
  • Part Number : 910-3200-002-D, Product : CONVERGE Pro 2 128TD
  • Part Number : 910-3200-003, Product : CONVERGE Pro 2 128V
  • Part Number : 910-3200-005, Product : CONVERGE Pro 2 48T
  • Part Number : 910-3200-006, Product : CONVERGE Pro 2 48V
  • Part Number : 910-3200-004, Product : CONVERGE Pro 2 120
  • Part Number : 910-3200-007, Product : CONVERGE Pro 2 012
  • Part Number : 910-3200-101, Product : CONVERGE Pro 2 128SR
  • Part Number : 910-3200-101-D, Product : CONVERGE Pro 2 128SRD
