• Great room solution – dramatically enhances the audio experience for any cloud-collaboration application with no external DSP needed.Add ClearOne’s Wall-Mount Bluetooth Expander to enable mobile devices to join the conference wirelessly.
  • BMA CT with built-in AEC and adaptive steering (think of it as smart switching) provides the same impeccable room coverage as the BMA CT.
  • Complete your system with any UNITE® conferencing camera.
  • Includes 2x10 Watt power amps.
  • Add a Versa Hub for single-cable connection for cloud-based collaboration.
  • Easily and quickly configure the system using CONSOLE® AI Lite software with Audio IntelligenceTM and Auto ConnectTM.
  • ClearOne’s BMA technology is protected by at least a dozen patents and pending patent applications.
  • Connect laptop or room PC to the BMA CT directly through the USB port on the Versa USB. The included 50-foot CAT6 cable connects the Versa USB to the BMA CT.

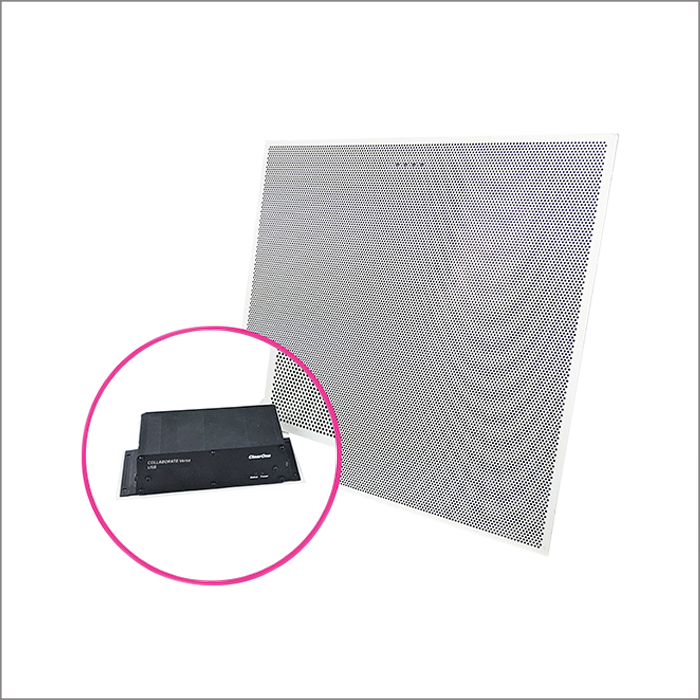

  • Delivering superb coverage and quality at an unbeatable price, the Versa Lite CT is easy to install and easy to use.
  • Complete your system with any UNITE camera, and add a Versa Hub for single-cable cloud-based collaboration.

INCLUDES

  • BMA CT 24in or BMA CT 600mm
  • COLLABORATE Versa USB
  • PoE Injector Kit
  • RJ45 CAT6 Cable – 50’

BMA CT

24 MICROPHONES

  • Number of Beams: Two patterns, either 5 or 6 beams
  • Polar Pattern: Custom
  • Frequency Response: 150Hz – 16kHz, +/- 3dB
  • Dynamic Range: 150Hz – 16kHz, > 70dB

AMPLIFIER OUTPUT

  • Type: 5.08mm Black Header, Male, Phoenix type Euroblock
  • Audio: 2 channels
  • Output Power: 2x10W Max, 8Ω load*
  • Frequency Response: 20Hz – 22kHz @ +10dBu, +/ 0.5dB

CONFIGURATION

  • Acoustic Echo Cancellation (AEC) on/off
  • Noise Cancellation (NC) on/off
  • Automatic Level Control (ALC) on/off
  • Gain adjust
  • Mute on/off

POWER SELECTION SWITCH

  • Type: Slide Switch

CONFIGURATION & ADMINISTRATION SOFTWARE

  • CONSOLE® AI Lite Software

MOUNTING

  • Ceiling mount (24” or 600mm drop-ceiling grid)

DIMENSIONS

  • 24” BMA CT
    • 23.72 x 23.72 x 2.13” (602.5 x 602.5 x 54.1mm)
  • 600 mm BMA CT:
    • 23.33 x 23.33 x 2.13” (592.5 x 592.5 x 54.1mm)

WEIGHT

  • BMA CT - 7.7lbs (3.5kg)

COLLABORATE VERSA USB

  • Port Type: USB-B Connector
  • Audio: Digital audio, 2 x 2 bidirectional channels
  • Sample Rate: 48 kHz
  • Sample Bit Depth: 24 Bit
  • Compatible: USB 2.0, USB 3.0
  • USB Cable Distance: 16 feet (5 meters)
  • Compatible: Windows & Mac OS devices

P-LINK PERIPHERAL BUS

  • Ports Type: RJ-45 (Cat5e or Cat6)
  • P-Link In & Out: Proprietary Peripheral Bus
  • PoE In:
    • P-Link In Port
    • PoE 802.3af Mode B, Midspan
    • Power on “spare pairs” 4,5 and 7,8
  • Cable: Solid core 24AWG, factory terminated Cat 5e or Cat 6 cable
  • Distance: Up to 200 feet (60 meters)

POWER SELECTION SWITCH

  • Sensor Type: Slide Switch
  • Toggle toward P-Link to power device by P-Link
  • Toggle toward PoE to power device by PoE Injector

PoE In PORT

  • Port Type: RJ-45 port
  • PoE: 802.3af or 802.3at PoE/PoE+ injector input

MOUNTING

  • Rack-shelf mount
  • Under the table mount
  • Wall mount
  • Ceiling mount

DIMENSION & WEIGHT

  • Width x Depth x Height:

    • Without rack-ears:
      • 5.5” x 1.6” x 4.1” ( 139.7 x 106.68 x 104.14mm)
    • With rack-ears:
      • 6.8” x 1.7” x 4.1” (172.72 x 4.3.18 x 104.14mm)
    • Unit Weight: 0.88 lbs (0.4 kg)

SYSTEM POWER & THERMAL

  • Power Type: PoE/PoE+
  • Port Type: RJ-45
  • PoE In/P-Link In: 802.3af or 802.3at PoE/PoE+
  • Power Source: PoE Injector or equivalent
  • PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
  • P-Link In - Mode B
  • Power Consumption:
    • 100-240VAC, 50/60Hz, 3 Watts Typical
    • 38W at max power 1kHz (2 x 10W)
    • Thermal: 130 BTU/Hr at max power
    • Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature

PART NUMBERS

930-3200-010-U - COLLABORATE Versa Lite CT

INCLUDES

  • 910-3200-205-U BMA CT 24in
  • 910-3200-305 COLLABORATE Versa USB
  • 910-3200-202 PoE power supply kit
  • 910-3200-204-50 RJ45 CAT6 Cable – 50’

PART NUMBERS

930-3200-010-I - COLLABORATE Versa Lite CT INTL

INCLUDES

  • 910-3200-205-I BMA CT 600mm
  • 910-3200-305 COLLABORATE Versa USB
  • 910-3200-202 PoE power supply kit
  • 910-3200-204-50 RJ45 CAT6 Cable – 50’

BMA CT MOUNTS FOR NON-TILE CEILINGS

  • 910-3200-210 BMA Surface-Mount Kits 24in
  • 910-3200-210-I BMA Surface-Mount Kits 600mm
  • 910-3200-212 BMA Recessed-Mount Kits 24in
  • 910-3200-212-I BMA Recessed-Mount Kits 600mm

OPTIONAL CLEARONE PERIPHERALS

  • UNITE® 150 PTZ Camera
  • CONVERGE® Wall-Mount Bluetooth Expander
  • COLLABORATE® Versa Hub
  • Ceiling Loudspeakers

COMPATIBLE WITH
