• Integration-ready Pro-AV meeting room system for COLLABORATE Space, MS Teams, Zoom, WebEx, GoToMeeting and more, to enrich the cloud-based collaboration experience.
  • One CONVERGE® Huddle audio DSP mixer for a professional audio experience.
  • One Ceiling Microphone Array with 360-degree coverage reducing noise and reverberation.
  • Clutter-free with optional CONVERGE Huddle VESA mount.
  • One UNITE® 150 PTZ HD camera with 1080p30, 12x optical zoom to capture all participants in the room.
  • Now, configure Versa Pro CT directly through the USB port, or use network Ethernet jack.
  • Monitor, control, and audit Versa Pro CT with CONVERGENCE™ unified AV network management software.
  • Complimentary 90-day trial of COLLABORATE Space, our powerful cloud-based collaboration application with a full suite of audio, video, and meeting tools in a persistent space.

INCLUDES

  • INCLUDES
  • UNITE® 150 USB PTZ HD camera
  • Ceiling Mic Array (White)
  • PoE Injector Kit

CONVERGE HUDDLE CTH
INPUTS

  • 3 channel balanced audio mic/line inputs with AEC
  • 1 channel balanced audio line input without AEC
  • 3.81mm orange-color Phoenix/Euroblock type male header, push-on mini-terminal block

LINE OUTPUTS

  • 2 channel balanced audio line outputs, 3.81mm black-color Phoenix/Euroblock type male header, push-on mini-terminal block
  • 1 USB 3.0 Type-B
  • 1 USB 3.0 Type-A
  • RJ-45, 10/100/1000Mbps, passthrough to USB-B 3.0

HDMI RESOLUTIONS

  • Ultra-high resolution support (up to 2560x1600)

UNITE 150 PTZ HD CAMERA

  • Full HD 1080p30
  • 73° wide-angle view
  • USB 3.0/2.0, Line In
  • Remote control, USB (UVC), RS-232
  • ±170° pan, -30° to +90° tilt, 12x optical zoom

CONTROL

  • Remote control, USB (UVC), RS-232

CEILING MICROPHONE ARRAY
ACOUSTIC CHARACTERISTICS

  • Polar Pattern: Cardioid
  • Dynamic Range: 80 dB, 1 kHz @ max SPL
  • Signal/Noise Ratio: 60 dBA, 1kHz @ 1Pa
  • Frequency Response: 100 Hz - 12kHz
  • Sensitivity: 114 mV/Pa

ELECTRICAL CHARACTERISTICS

  • Element: Fixed-charge back plate permanently polarized condenser
  • Phantom Power Requirement: 12-52 vdc, 2 mA typical
  • Impedance: 200 Ω

PART NUMBERS

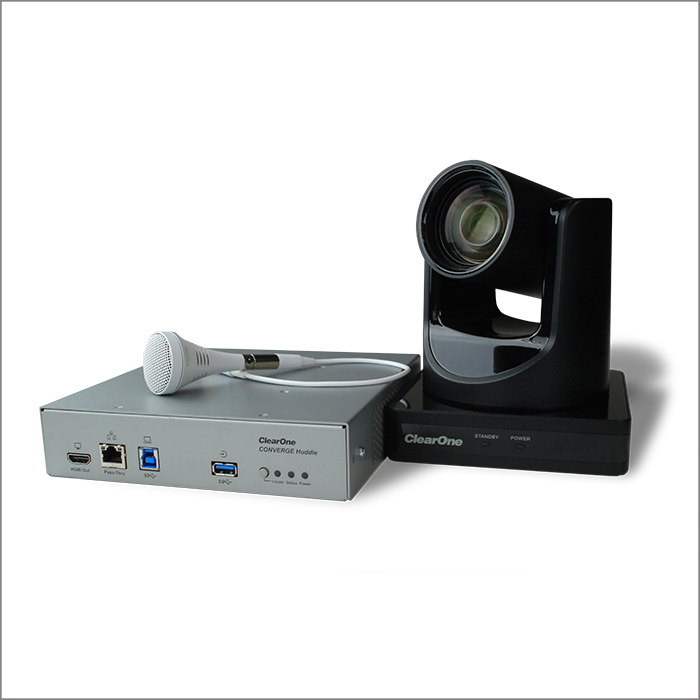

930-3200-150 COLLABORATE® VERSA Pro 150

INCLUDES

  • 910-3200-706 CONVERGE® Huddle CTH
  • 910-2100-004 UNITE® 150 USB PTZ HD camera
  • 910-001-013-W Ceiling Mic Array (White)
  • 910-3200-202 PoE Injector Kit

COMPATIBLE WITH
