  • Great room solution for BYOD collaboration using any cloud-based collaboration service such as Microsoft® Teams, WebEx™, Zoom™, and more.
  • Configure using CONSOLE® AI software’s enhanced visualization and audio intelligence.
  • BMA CT with built-in AEC, provides the same impeccable room coverage using adaptive steering (think of it as smart switching).
  • Now, configure Versa Pro CT directly through the USB port, or use network Ethernet jack.
  • Includes mic/line inputs with AEC, line outputs, 4x10 Watt power amps, USB audio, mobile phone jack, and HDMI.
  • Monitor, control, and audit Versa Pro CT with CONVERGENCE™ unified AV network management software.
  • Comes preloaded with a project file ready for the most common room configuration.
  • With a rich mix of video and audio options, the Versa Pro CT is versatile, flexible, and easy to install.
  • There is no system in the market today that can compete with the Versa Pro CT on price, features, coverage, and quality.
  • Add ClearOne’s Wall-Mount Bluetooth Expander and UNITE® cameras to complete your collaboration system.

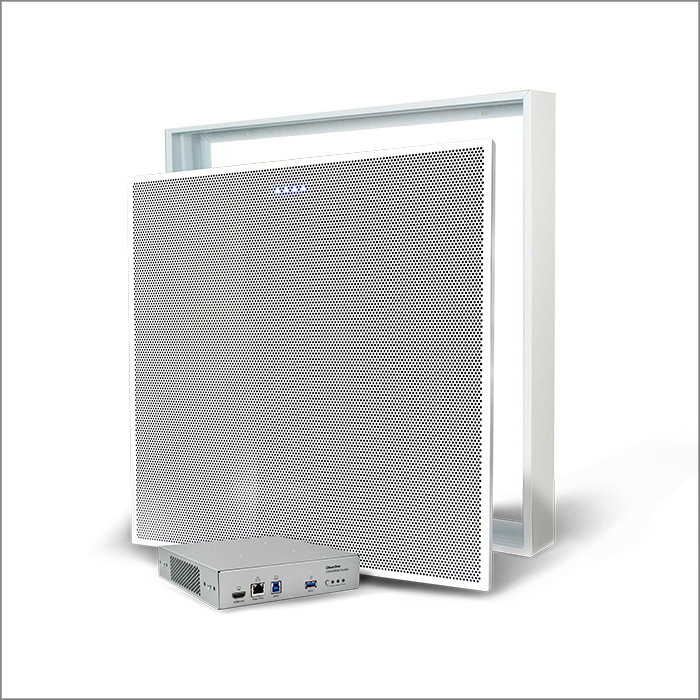

INCLUDES

  • CHOICE OF BMA CT
    • BMA CT 24in
    • BMA CT 600mm
  • CONVERGE® Huddle CT
  • PoE Injector Kit

NOTE: See Component Datasheets for Full Specs

BMA CT
24 MICROPHONES

  • Number of Beams: Two patterns, either 5 or 6 beams
  • Polar Pattern: Custom
  • Frequency Response: 150Hz – 16kHz, +/- 3dB
  • Dynamic Range: 150Hz – 16kHz, > 70dB

AMPLIFIER OUTPUT

  • Type: 5.08mm Black Header, Male, Phoenix type Euroblock
  • Audio: 2 channels
  • Output Power: 2x10W Max, 8Ω load*
  • Frequency Response: 20Hz – 22kHz @ +10dBu, +/ 0.5dB
  • THD + Noise: 20Hz – 22kHz @ +10dBu, 1W, < 0.2%
  • Dynamic Range: 20Hz – 22kHz @ +20dB, > 102dB, with 20kHz digital low pass filter
  • Crosstalk: Channel to Channel, stimulus at +20dBu receptor 10W output 8Ω load, 20Hz – 22kHz,< -60dB

LED

  • 4 LED indicators on one end of unit:
  • Mute/Un-mute configuration with 8 color options, two blink patterns and warning indications

CONFIGURATION

  • Beam enable/disable
  • Acoustic Echo Cancellation (AEC) on/off
  • Noise Cancellation (NC) on/off
  • Filters: All Pass, Low Pass, High Pass, Notch, PEQ
  • Automatic Level Control (ALC) on/off
  • Gain adjust
  • Mute on/off
  • Auto gate/Manual gate

P-LINK PERIPHERAL BUS

  • Ports labeled as “Expander” on Huddle Chassis, and “P-Link” on BMA CT
  • P-Link In & Out: Proprietary Network
    • Ports Type: RJ-45
    • Cable: RJ45 Cat5e, Cat6, Expandable
    • Distance: Up to 200 ft.

POWER SELECTION SWITCH

  • Type: Slide Switch
  • Slide toward P-Link to power device by P-Link
  • Slide toward PoE to power device by PoE Injector

CONFIGURATION & ADMINISTRATION SOFTWARE

  • CONSOLE® AI Software

MOUNTING

  • Ceiling mount (24” or 600mm drop-ceiling grid)

POWER & THERMAL

  • Power Type: PoE
  • Port Type: RJ-45
  • Power Source: PoE Injector or equivalent
  • PoE: IEEE 802.3at compliant devices providing 56V and 640 mA (36 W).
  • P-Link In - Mode B
  • PoE In - Mode A and Mode B
  • *BMA CT requires its own PoE (IEEE 802.3 at compliant) if 2x10W speakers are driven
  • Power Consumption:
    • 100-240VAC, 50/60Hz
    • 9.1 Watt typical without speaker amp
    • 38W at max power 1kHz (2 x 10W)
    • Thermal: 130 BTU/Hr at max power
    • Operating Temperature: 14° F/-10° C to 104° F/40° C ambient temperature

DIMENSIONS

  • 24” BMA CT
    • 23.72 x 23.72 x 2.13” (602.5 x 602.5 x 54.1mm)
  • 600 mm BMA CT:
    • 23.33 x 23.33 x 2.13” (592.5 x 592.5 x 54.1 mm)

WEIGHT

  • BMA CT - 7.7lbs (3.5kg)

CONVERGE HUDDLE CT
INPUTS

  • 3 channel balanced audio mic/line inputs with AEC
  • 1 channel balanced audio line input without AEC
  • 3.81mm orange-color Phoenix/Euroblock type male header, push-on mini-terminal block

LINE OUTPUTS

  • 2-channel balanced audio line outputs, 3.81mm black-color Phoenix/Euroblock type male header, push-on mini-terminal block
  • 1 USB 3.0 Type-B
  • 1 USB 3.0 Type-A
  • RJ-45, 10/100/1000Mbps, passthrough to USB-B 3.0

AMPLIFIER OUTPUT

  • Type: 5.08mm Black Header, Male, Phoenix type Euroblock
  • Speaker Output Port: Dual binding posts
  • Audio: 2 Channels
  • Output Power: 10W Max, 8Ω load
  • Frequency Response: 20Hz – 22kHz @ 10dBu, +/- 0.5dBu
  • THD + N (Total Harmonic Distortion + Noise):
  • 20Hz – 22kHz @ 10dBu, 1W, <0.3%
  • Dynamic Range: 20Hz – 22kHz @ 20dB, >102dB with 20kHz digital low pass filter
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor, < -70dB

DIMENSIONS

  • CONVERGE HUDDLE
    • 7.52” x 7.83” x 1.73” (191mm x 199mm x 44mm)

WEIGHT

  • CONVERGE HUDDLE - 2.9 lbs (1.32 kg) approx.

POWER OVER ETHERNET (PoE) REQUIREMENTS

  • If no built-in amps used on either the Huddle DSP or BMA CT, only 1 PoE+power supply is required for all 3 devices.
  • If built-in amps on Huddle DSP and/or BMA CT are used, two PoE+power supply units will be required; one for the Huddle DSP, one for the BMA CT.
  • No additional PoE+power supplies are required for use of the Bluetooth Expander

BMA CT MOUNTS FOR NON-TILE CEILINGS

  • 910-3200-210 BMA Surface-Mount Kits 24in
  • 910-3200-210-I BMA Surface-Mount Kits 600mm
  • 910-3200-212 BMA Recessed-Mount Kits 24in
  • 910-3200-212-I BMA Recessed-Mount Kits 600mm

PART NUMBERS

930-3200-206-U - COLLABORATE Versa Pro CT

INCLUDES

  • 910-3200-206-U BMA CT 24in
  • 910-3200-701 CONVERGE® Huddle CT
  • 910-3200-202 PoE power supply kit

PART NUMBERS

930-3200-010-I - COLLABORATE Versa Pro CT Intl

INCLUDES

  • 930-3200-206-I BMA CT 600mm
  • 910-3200-701 CONVERGE® Huddle CT
  • 910-3200-202 PoE power supply kit
