AWARDS
- Plug-and-Play Simplicity Coupled with Wireless Connectivity : Provides the ultimate convenience and freedom of movement. Allows you to focus on your message, not the wires!
- Great for Webcasting and Collaboration : The perfect microphone for webcasting and cloud-based collaboration with Microsoft Teams, Zoom, WebEx, GoToMeeting, and others.
- Connect a USB Type C cable to your PC for audio, power, and control. No external power source or additional audio cables required.
- Robust, frequency-hopping spread-spectrum technology with no frequency license restrictions world-wide.
- Auto-scan feature finds open channels for optimal reception.
- Standards-based FIPS 197 AES-128 encryption ensures a secure link for wireless audio.
- Wide audio bandwidth provides superior speech clarity, and ultra-low audio latency enhances the audio experience.
- Delivers exceptionally high-quality audio at a very affordable price.
- Ideal for public events, live streaming, studio demonstrations, and classroom presentations in spaces up to 2500 square feet.
- Great for personal events. Every home should have one!

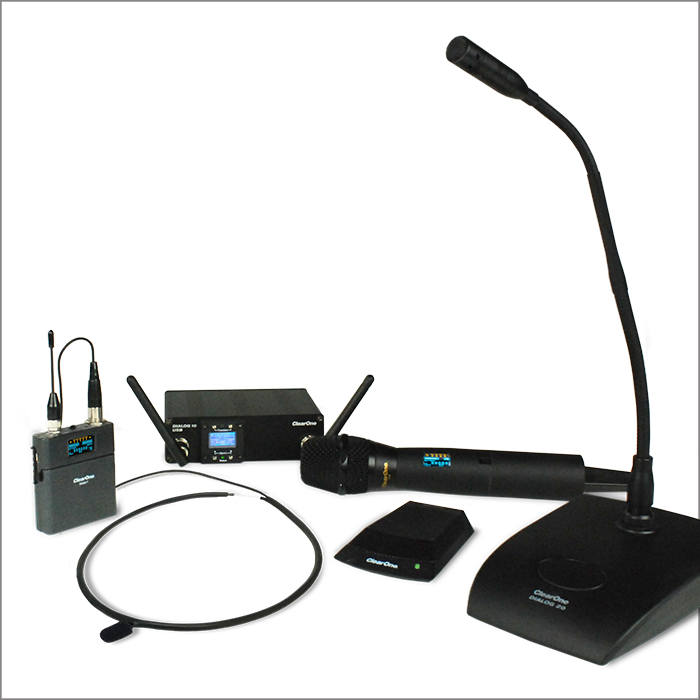

- Complete range of microphone options for any setting - Handheld, Boundary, and Gooseneck, plus Beltpack with Lanyard, Headset or Lavalier.
- In multi-user environments, each user can be assigned their own microphone to pair with a common room receiver.
- Large color LCD for viewing battery life, received signal strength, and programmable microphone ID labeling.
- Microphones can be powered by common alkaline or environmentally friendly rechargeable NiMH AA batteries – Charge via USB or optional charging dock.
- Compact, plenum-rated receiver can be mounted on desktop, credenza, under table, behind video display or even hidden above a ceiling. Mounting has never been more flexible and easy!
AUDIO
- Frequency Response: 20 Hz to 20 kHz
- Audio Sampling: 24 bit, 48 kHz
- Signal to Noise Ratio: 109 dB(A)
- Latency: < 4 ms
- Output: USB Audio
RADIO FREQUENCY
- Radio Frequency: 2.4 GHz to 2.483 GHz
- Technology: Adaptive frequency hopping
- RF Range: 98’ / 30 m
- Encryption: FIPS 197 AES-128 bit
RECEIVER
- RF Sensitivity: -89 dBm
- Display: Color LCD
- Audio Output: +4 dBu
- Interface: 1 x USB 3.0 type C, female
- Antenna Connection: TNC
- Power Consumption: 0.5 W
- Antenna: dual dipole antenna
- Mount: desktop, credenza, wall, or ceiling
- Dimensions: 6.77 x 1.67 x 5.01” (172 x 42.3 x 127.5 mm)
- Weight: 0.95 lbs (0.43 kg)
TRANSMITTERS
- RF Output Power: 1 mW, 10 mW
- Display: OLED (Handheld and Beltpack)
- Power Supply: Battery or USB
- Battery: AA size, rechargeable batteries
- Battery Requirement: (2) AA batteries for Tabletop, Handheld, and Beltpack /(4) AA batteries for Gooseneck Podium
- Talktime: (2) AA = 12 hrs, (4) AA = 15 hrs
- Programmable Button: Push to Talk (PTT), Push to Mute firmware upgrade.
PART NUMBERS
- 910-6100-010 DIALOG® 10 USB Receiver (1 Channel)
DIALOG 20 TRANSMITTERS1
- 910-6101-001 Tabletop / Boundary (Cardioid)
- 910-6101-011 Tabletop / Boundary (Omni)
- 910-6102-061 Gooseneck / Podium, 6 inch (Cardioid)
- 910-6100-121 Gooseneck / Podium, 12 inch (Cardioid)
- 910-6101-181 Gooseneck / Podium, 18 inch (Cardioid)
- 910-6103-001 Handheld transmitter with H18, Condenser, Cardioid Mic Capsule
- 910-6103-011 Handheld Transmitter with H13, Dynamic, Super Cardioid Mic Capsule.
- 910-6104-001 Beltpack Transmitter
ACCESSORIES
- 910-6004-010 Lavalier Microphone for Beltpack (Omni)
- 910-6004-050 Lanyard Microphone for Beltpack (Omni)
- 910-6004-020 Single-ear Headset, Black (Omni)
- 910-6004-020-T Single-ear Headset, Tan (Omni)
- 910-6004-400 4-Bay Docking Station
- 910-6004-800 8-Bay Docking Station
- 910-6105-011 Extension Antenna Kit, RG58 Cable, 10 ft
- 910-6105-021 Extension Antenna Kit, RG8 Cable, 25 ft
[1] DIALOG 20 Wireless Transmitters are compatible with all DIALOG 10 and DIALOG 20 Receivers.
COMPATIBLE WITH
