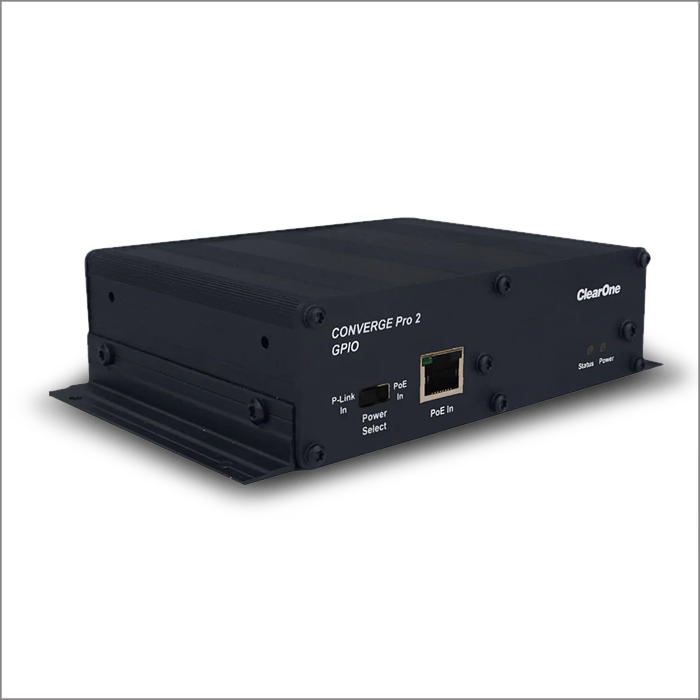

- Can be used to activate LED on mics, trigger macros and presets, activate camera tracking, and activate global mute.
- Can daisy-chain up to three GPIO expanders per CP2, and can also be daisy-chained with other P-link devices.
- Can be placed up to 200’ (60m) from CP2 or other P-link devices, extending a P-link chain.
- Compact form factor and flexible mounting (rack, under-table, wall, or ceiling).
- P-link or PoE Injector for power and Serial connection for control interface.
GPIO
- Total Pins: Inputs: 12
- Outputs: 12
- 5V DC: 1 for every 3 I/O pins
- GND: 1 for every 3 I/O pins
- Port Type: 5 Position 3.81mm Phoenix/Euroblock type, male header (Green)
- Input Blocks: 4
Each Block, Pins 1 to 5:
- Pin 1: 5V DC @ 350mA Power Source
- Pins 2, 3, 4: Logic inputs, 40.2kΩ pull up
- Pin 5: Ground - Output Blocks: 4
Each Block, Pins 1 to 5:
-Pin 1: 5V DC @ 350mA Power Source
- Pins 2, 3, 4: Open Collector outputs 40VDC @ 250mA
- Pin 5: Ground
P-Link Peripheral Bus
- Ports Type: RJ-45 (Cat5e or Cat6)
- P-Link In & Out: Proprietary Peripheral Bus
- PoE In: P-Link In Port
- PoE IEEE802.3AF
- Audio: Up to 3 GPIO Expander units + Beamforming Microphone Array 2 units + up to 3 DIALOG 20 Wireless Receiver units, along with up to 3 GPIO Expander units in the same chain
- Cable: Solid core 24AWG, factory terminated Cat 5e or Cat 6 cable
- Distance: Up to 200 feet (60 meters)
- Daisy-chain: Up to 3 GPIO Expander units + Up to 3 Beamforming Microphone Array 2 units + Up to 3 USB Expander units + Up to 3 DIALOG 20 Wireless Mic Receiver units in the P-link chain
RS232
- Type: 3 Position (Tx, Rx, Gnd) 3.81mm Grey Header, Male, Phoenix type Euroblock connectors
- Support: Serial commands
- Connection: Connect with Touch Panel Controller for CP2, 3rd-party control devices
POWER SELECTION SWITCH
- Sensor Type: Slide Switch
- Toggle toward P-Link to power device by P-Link
- Toggle toward PoE to power device by PoE Injector
PoE In PORT
- Port Type: RJ-45 port
- PoE: 802.3af or 802.3at PoE/PoE+ injector input
CONFIGURATION & ADMINISTRATION SOFTWARE
- Pro CONSOLE Software
FRONT PANEL LEDs
- POWER LED:
- Off: Not powered
- Solid Blue: Powered ON - STATUS LED:
- Off: No P-Link plugged in
- Solid Blue: P-Link plugged in and system working normally
- Flashing Blue: Locate mode initiated from Pro CONSOLE Software
- Red: an Error condition
MOUNTING
- Rack-shelf mount
- Underneath table mount
- Wall mount
- Ceiling mount
