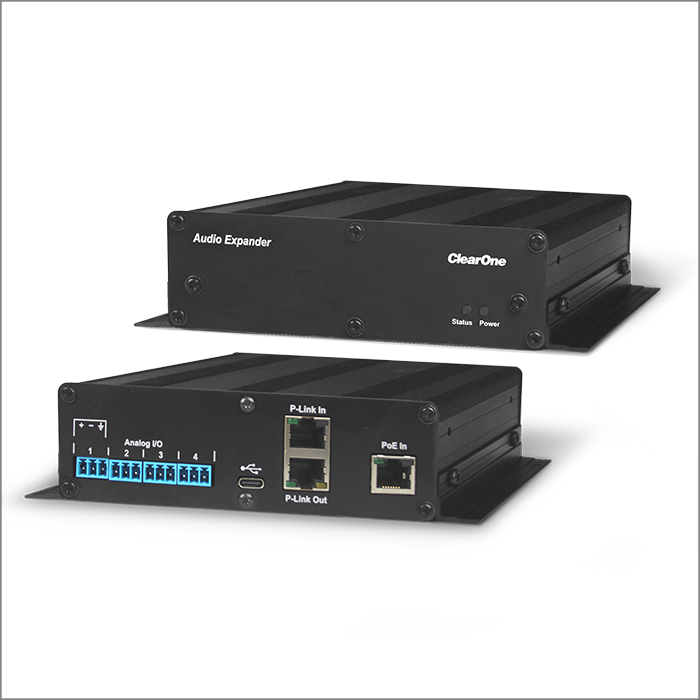

  • There are 4 professional quality flexible analog channels that can be independently configured as either input or output.
  • As an input, the channel has a generously large gain range allowing it to connect to all types of professional and consumer level sources. For microphones that require it, clean +48 volt phantom power can be enabled.
  • As an output, a channel can be configured for either line level or mic level.
  • The USB-C connector provides driverless 2 channel USB Audio for Windows, Mac, and Linux computer systems, allowing easy BYOD connectivity.
  • ClearOne P-Link provides audio, control, and power connectivity from the BMA 360DX using a single CAT 6 cable.

Part Number

  • 910-3200-306

Analog I/O
4 x Mic/Line Inputs or 4 x Mic/Line Outputs, selectable

  • 3.81 mm blue, male header

Frequency Response

  • 20 Hz – 22 kHz @ 0 dBu ,+/- 0.5 dB

Equivalent Input Noise (EIN)

  • 20 kHz BW, max gain, Rs = 150 Ω, -126 dBu

THD + Noise

  • 20 Hz – 22 kHz @ 0 dBu, line level, < 0.01 %
  • 20 Hz – 22 kHz @ -56 dBu, mic level, < 0.2 %

Dynamic Range

  • 20 Hz – 22 kHz @ 0dBu, > 105 dB

Crosstalk (Mic/Line)

  • Channel to Channel, stimulus at 20 dBu to receptor at -56 dBu, 1 kHz, < 0.05 % (or -66 dB) of stimulus signal at 1 kHz, 20 dBu (or 7.746 Vrms)

Input Impedance (Mic/Line balanced)

  • Balanced (line to ground), 2.2 kΩ, 1 %

Nominal Input Level

  • Adjustable: -56 dB to 0 dB, 7 dB step coarse gain

Maximum Input Level

  • +20 dBu

Phantom Power

  • Impedance: 6.81 kΩ, 48 V

Output Impedance (Mic/Line balanced)

  • Balanced, 95 Ω, 1 %

Nominal Output Level

  • -40 dBu or 0 dBu

Maximum Output Level

  • +20 dBU (when set for Line level)
  • -20 dBU (when set for Mic level)

USB Audio
Type: USB-C connector, Digital Audio

  • 2 Channels Stereo
  • 48 kHz, 24-Bit

Peripheral PoE
PoE In

  • RJ-45
    • IEEE802.3 bt compliant devices or equivalent,
    • PoE++ - Mode A, Mode B, and 4-pair Mode

Peripheral Bus
P-Link in and Out

  • Ports Type: RJ-45
  • P-Link Power: 56 V 36 W IEEE 802.3 at compliant devices or equivalent, Mode B
  • Cable: Solid core 23 AWG, factory terminated Cat 6
  • Distance: Normal distance mode: Up to 200 ft (60 m)

Power LED

  • Blue

Status LED

  • Blue
  • Red

Power Consumption
Power and Thermal

  • 100-240 VAC, 50/60 Hz. 120 VAC, 60 Hz @ 0.167 A
  • Thermal: 34.8 BTU/hr
  • 9.6 W typical
  • Operating Temperature: 14 °F/-10 °C to 104 °F/40 °C

Dimension and Weight
Dimensions

  • 6.77 x 6.69 x 1.73” (172 x 170 x 44 mm)

Product Weight

  • 3.1 lbs (1.4 Kg)

Shipping Weight

  • 4.2 lbs (1.9 Kg)

Operating Temperature

  • 14 °F/-10 °C to 104 °F/40 °C

Mounting

  • Brackets included for mounting under a table
