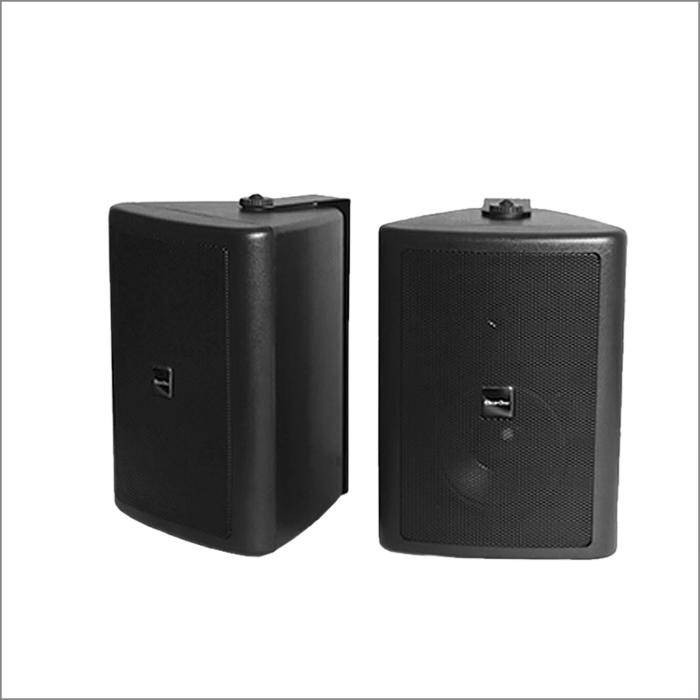

- Speaker Type: 2-way, wall-mount speaker
- Frequency Range: Offers a frequency response of 80 Hz - 19 kHz, ensuring a broad audio spectrum for high quality sound.
- Power Handling: Capable of handling 30 watts RMS and 80 watts peak.
- Sensitivity: Delivers 90 dB SPL at 1 watt, measured from 1 meter.
- Connectivity: Supports both 8 ohm nominal impedance and 70/100V taps for efficient power distribution and simplified wiring.
- Coverage Angle: 110° conical coverage for wide sound distribution
- Woofer: 6.5 inch polypropylene cone with moisture-resistant rubber coating.
- Tweeter: 0.5 inch Mylar tweeter for clear high-frequency sound reproduction
- Dimensions: 11.26 in.× 8.27 in. × 7.48 in. (286 mm(H)× 210 mm(W) × 190 mm(D)). 5 lbs (2.27 kg) per speaker, designed for easy wall mounting with an included adjustable bracket.
Part Number
- 910-151-002-01
Speaker Type
- 2-way, Wall Mount Speaker
Frequency Range
- 80 Hz - 19 kHz
Power Handling
- 30 watts RMS, 80 watts Peak
Nominal Sensitivity
- 90 dB SPL, 1 W @ 1 m
Nominal Coverage Angle
- 110° Conical Coverage
Nominal Impedence
- 80 ohms
Transformer Taps
- 70 V – 30 W, 15 W, 7.5 W, 3.8 W, 1.9 W
- 100V – Null, 30 W, 15 W, 7.5 W, 3.8 W Woofer diameter: 6.5 in. (165 mm)
Woofer
- 5 in. (127 mm) poly-propylene cone with moisture resistant rubber coating
Tweeter
- 0.5 in. (12.7 mm) Mylar Tweeter
Termination
- Two (2) Input Termination Screws (Red = Positive Post, Silver = Negative Post)
Dimensions
- 11.26 in.× 8.27 in. × 7.48 in. (286 mm(H) × 210 mm(W) × 190 mm(D))
Net Weight (each)
- 5 lbs (2.27 Kg)
