  • Real-time stitching creates a seamless 180-degree panoramic view of wide spaces by bringing the views of multiple lenses together as one complete image.
  • Designed for professional-quality visual collaboration, conferencing, UC applications, distance learning, and more, the new UNITE 180 camera provides six viewing modes for room and participant close-ups.
  • Large classroom settings, training centers, or any wide conferencing area are all captured and presented with perfect clarity in any of the viewing mode options.
  • A 4x zoom enhances the UNITE 180 feature set.
  • Display modes include:
    1. a. Compose Mode presents a panoramic view along with optional close-ups of up to eight people using people tracking.
    2. b. Manual Mode is a perfect option for focusing on a specific area of the meeting room.
    3. c. Autoframing Mode automatically frames participants in the room.
    4. d. Grid Mode uses people tracking to track each participant in a separate window showing up to four participants.
    5. e. Speaker Mode detects the presenter which is a particularly useful feature in classrooms.
    6. f. Presentation Mode features a content-sharing window on the main screen with a picture-in-picture floating window of the presenter.
  • The UNITE 180 is compatible with all popular cloud-based collaboration applications including Microsoft Teams, Zoom, WebEx, Google Meet, ClearOne’s COLLABORATE Space and others.
  • Comes with a free 2-year support and maintenance warranty with additional extension options.

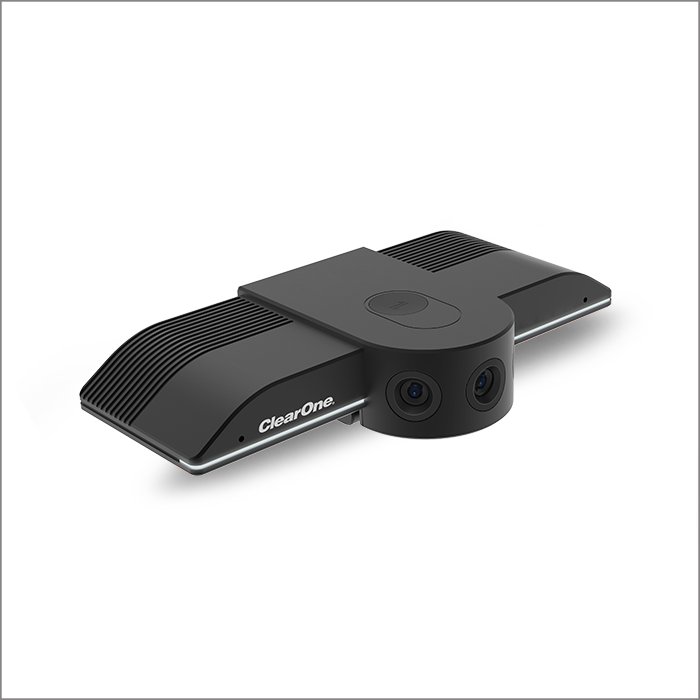

  • 910-2100-180 UNITE® 180 Camera

INCLUDES

  • Free COLLABORATE® Space lifetime subscription

VIDEO

  • Max Resolution: 4K@30fps
  • 180° FOV (H) and 60° FOV (V)
  • Sensor: OV12D, 12MP, 1/2.5, 1.405
  • Tilt Range: UP 15°, Down 15°
  • Display Mode: Dynamic (Support Compose/ Manual/ Autoframing/ Grid/ Presentation and Speaker mode)
  • Fixed Focus, 4X lossless zoom
  • Focus Distance: 1.5m
  • Aperture: 2.2
  • Minimum Illumination: 10lux
  • Stitching: Hyper-stitching (Adaptive real-time stitching)
  • Color System / Compression: H.264/YUY2/MJPG

AUDIO

  • Microphones: 2
  • Pickup Distance: 13 feet
  • Audio Algorithm: AGC (Automatic Gain Control) , NC (Noise Cancellation)

INTERFACE

  • USB Interface: USB2.0(UVC, UAC), USB Type C
  • Operating System: Windows® 7 (1080p and under only), Windows 8.1, Windows 10, MAC OS10.10 or higher
  • Hardware Requirement: 2.4 GHz Intel® Core 2 Duo processor or higher, 2 GB RAM or more

POWER

  • Input Voltage: 5V
  • Current Consumption: 500mA
  • Power Consumption: 2.5W

ENVIRONMENTAL

  • Operating Temperature: 0° C - 40° C
  • Operation Humidity: 10% - 90%RH
  • Storage Temperature: -20° C - 60° C
  • Storage Humidity: 10% - 90%

MECHANICAL

  • Dimensions (WxHxD): 3.93 x 0.98 x 1.96” (100 x 25 x 50mm)
  • Weight: 0.46lb (0.21kg)

COMPATIBLE WITH
