- Very low end-to-end (glass-to-glass) latency of around 1.5 frames / 25 ms
- Up to 4K60 resolution support
- Local loop-back HDMI output
- High bandwidth requirement of around 850 Mbps
- USB HID for source control through keyboard and mouse
- PoE and DC power options
Video
- Codec: JPEG2000
- Bandwidth: 850 Mbps
- HDMI IN:
- X1
- Single Source HDMI input
- Resolution support up to 4K@24/30Hz 4:4:4, 8-bit, 4K@50/60Hz 4:2:0, 8 bit, with multi-channel audio
- HDCP 2.2 compliant
- HDMI OUT
- X1
- A local HDMI loopback output (for video and audio) which is split from the HDMI Input that mirrors the resolution of the input
Audio
- Audio In: 3.5mm jack for analog audio input that replaces the HDMI audio when plugged in
- Audio Output: 3.5mm jack for analog audio output extract from HDMI
Control
- Serial RS232 Port: 3.5mm phoenix jack for the serial data transmission
- IR Input: 3.5mm phone jack for IR receiving
- IR Output: 3.5mm IR jack for IR transmitting
- USB Host:
- USB Type-B connector
- Connect to PC or other HID controlled device for USB HID signal transmission
General
- LAN / PoE:
- RJ-45 Ethernet jack with PoE support
- IEEE 802.3AF PoE PD standard
- 10/100/1000Mbps Ethernet Port
- Reset:Factory reset by pressing the button continuously for 5 seconds

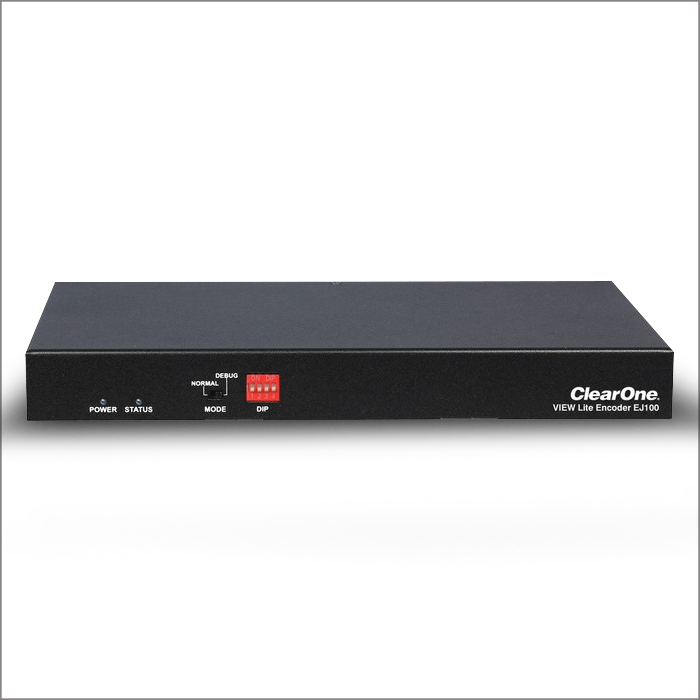

- Modes:
- NORMAL: Encoder’s RS232 is working for serial data transmission
- DEBUG: Encoder’s RS232 is working for DEBUG
- DIP: For quick setting of multiple units working in the same network without Controller or PC software
- Power: 12V 1A DC power supply with locking (included)
Mechanical
- Dimensions (W x H x D): 8.7” × 1” × 5.1” (220mm × 25mm × 130mm)
- Weight: 1.63 lbs (0.74 kg)
- Mounting: Mounting ears included
- Operating Temperature: 32 to 104°F (0 to 40 °C)
