CHAT® 150 & CHATAttach® 150

Group USB speakerphone, powered by ClearOne’s market leading HDConference™ audio, enhances your web conferencing, unified communications and video conferencing experience in your personal workspace, huddle rooms, small and medium-size conference rooms with crystal-clear audio for business class performance.

Contact Us

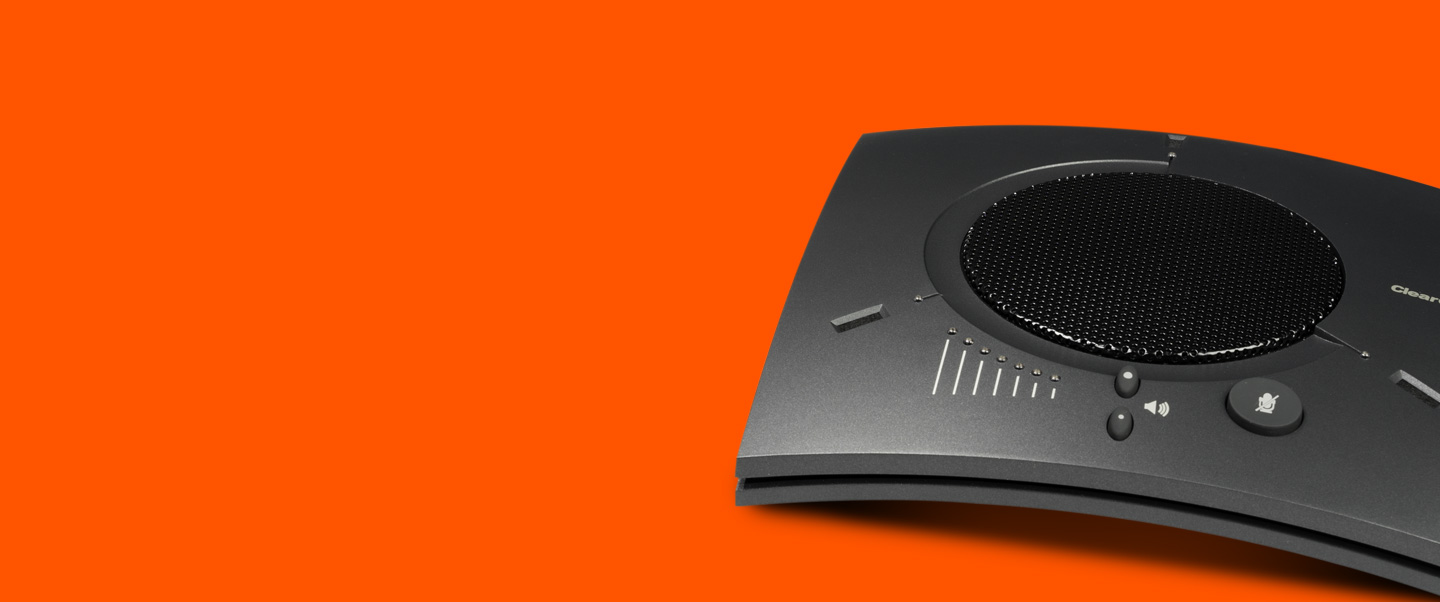

ClearOne CHAT® 150 & CHATAttach® 150 Group USB speakerphone

COMPATIBLE WITH

Enhance Your Cloud Collaboration

Key Highlights

  • Distributed Echo Cancellation® and noise cancellation along with full-duplex performance and automatic level controls guarantee your conference calls to be natural with unmatched audio clarity free of any distractions
  • Connect the CHAT 150 or the CHATAttach 150 to laptops & PCs via USB for handsfree audio
  • First-mic priority intelligently activates only the microphone closest to the person speaking, preventing the amplification of ambient noise and room reflections
  • Daisy-chainable design can expand up to two complete speakerphones to cover medium-sized rooms. Full speakerphone expandability allows both mic and speaker to cover the entire room along with flexibility of control using any speakerphone

Applications

  • Unified communications
  • Video conferencing
  • Web conferencing

Workspaces

  • Huddle spaces
  • Conference rooms

System Requirements

  • Microsoft Windows 8, 10
  • Mac OS

Connections

  • USB:
    - Version 2.0 Compatible
    - Type: Mini-B Female
  • Keyed Connector:
    - Keyed RJ-45 (8-conductor)

Line Input/Output via vC Breakout Box (BOB)

  • Frequency Response:
    - 20Hz - 20 kHz +/- 1 dB
    - Maximum Level: +6 dBu
    - Input Impedance: 10 kΩ
    - Output Impendance: 50 Ω

Controls

  • Volume Up
  • Volume Down
  • Microphone Mute

Audio

  • Speaker:
    - Bandwidth: 190 Hz - 20 kHz
    - Max Output Level: 85 dB SPL @ 1 foot (0.30 meter)
  • Microphone:
    - Bandwidth: 50 Hz - 7.75 kHz

Environmental

  • Operting Temperature:
    - 41 - 104° F (5 - 40° C)

Processing

  • Full Duplex
  • Distributed Echo Cancellation (D.E.C.)®
  • Noise Cancellation (NC)
  • Automatic Level Control (ALC)
  • Line Echo Cancellation (LEC) - Selectable
  • First-Mic Priority

Power

  • USB:
    - 5 VDC @ 500 mA Maximum
  • External:
    - Input: 100 - 240 VAC •Output: 9 VDC @ 560 mA
    - Tip: Power
    - Ring: Ground

Mechanical

  • Dimensions (W x D x H):
    7.4” x 7.4” x 1.8” (18.8 cm x 18.8 cm x 4.6 cm)
  • Weight:
    1.17 Ibs (0.53 kg)

Compliance

  • RoHS
  • REACH
  • FCC Class A Part 15
  • CES-003
  • CE Listed
  • UL Listed

Model numbers

  • 910-156-200 CHAT 150 USB:
    • Single CHAT 150 and Connecting Cable
  • 910-156-200-00 CHATAttach 150:
    • Two (2) CHAT 150 Devices, Connecting Cables and Power Supply
  • 910-156-222 CHAT 150 Avaya:
    • CHAT 150 and Connecting Cable to Avaya Enterprise Phone
  • 910-156-230 CHAT 150 VC:
    • CHAT 150 and Cable to Video Conference System

Accessory Part numbers

  • 860-156-230L CHAT 150 VC Accessory Kit:
    • Includes Video Conferencing Breakout Box, Power Adapter, International Power Clips, RCA Connection Cable, 25’ Link Cable
  • 860-156-222L CHAT 150 Avaya Accessory Kit:
    • Includes Breakout Box for 2410, 2420, 4610 and 4621 Telephone Handsets, Power Adpater, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
  • 860-156-220L CHAT 150 Cisco Accessory Kit:
    • Includes Breakout Box for 7940, 7960, and 7970 Telephones, Power Adapter, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
  • 910-156-225 CHATAttach expansion Kit:
    • Includes Cables, Power Supply and Quick Start Guide to Update Two (2) CHAT 150 Devices to CHATAttach

Related Products

Other products that may interest you

CHAT 150 and CHATAttach 150 FAQs

What's the difference between CHAT 150 and CHATAttach 150?

The CHAT 150 is a single speakerphone unit, while the CHATAttach 150 allows you to connect two CHAT 150 units together for expanded coverage in larger rooms. Both provide the same superior audio quality and features.

How many participants can a single CHAT 150 unit effectively support?

A single CHAT 150 unit is ideal for small to medium-sized meetings of up to 8-10 participants. When expanded with CHATAttach 150, the system can effectively support up to 16-20 participants with clear audio coverage.

How easy is it to expand the system with additional units?

The CHATAttach 150 makes expansion simple with plug-and-play functionality. Units can be connected using the included cable, requiring no additional software configuration or technical expertise to set up.

Is this system compatible with major video conferencing platforms?

Yes, the CHAT 150 system is compatible with all major video conferencing platforms including Zoom, Microsoft Teams, Google Meet, and WebEx. It connects via USB and is recognized as a standard audio device.
