COLLABORATE® Pro 300
Video collaboration room system designed for individual offices, huddle spaces, and small to medium-size conference rooms.
Key Highlights
- One COLLABORATE Pro 300 appliance for point-to-point conferencing.
- One UNITE 150® PTZ camera to see everything with 1080p / 30fps HD video, 12x optical zoom, and wide-angle view to capture all participants.
- One CHAT® 150C speakerphone to communicate effortlessly with adaptive acoustic modeling, first-microphone priority plus echo and noise cancellation.
- Complimentary 90-day COLLABORATE® Spontania, the premier cloud-based audio and video collaboration suite.
Applications
- Audio and video conferencing
- Interactive whiteboarding
- Wireless presentation
Environments
- Huddle spaces
- Executive offices
- Small to medium-size meeting rooms
System Includes
- COLLABORATE Pro 300 codec
- UNITE 150 PTZ camera
- CHAT 150C speakerphone
- Power supplies, cables and accessories
- Spontania Cloud Meeting room subscription (90 days)
- One-year support and maintenance with warranty

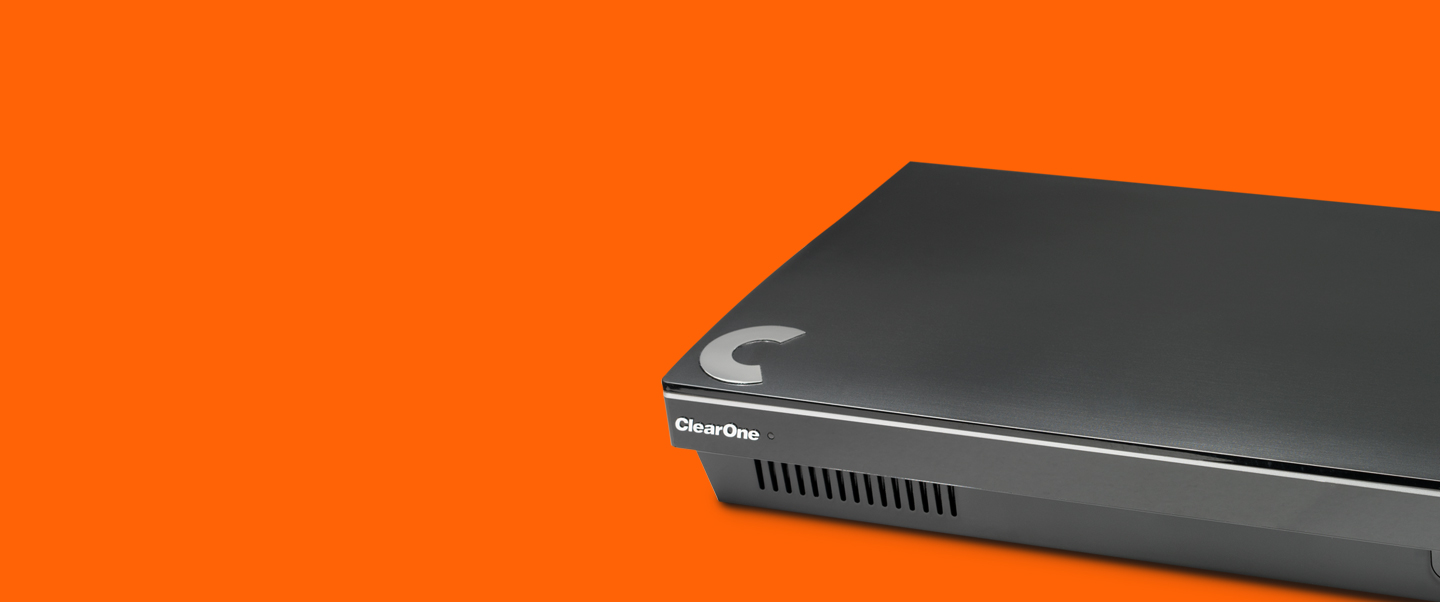

COLLABORATE Pro 300 Codec Appliance
- Video inputs: 1x USB 3.0
- Video outputs: 1x HDMI, 1x Display port
- Audio inputs: USB (Digital audio)
- Audio outputs: USB, S/PDIF
- USB: 4x USB 3.0
UNITE 150 PTZ Camera
- 12x Optical Zoom
- 73° wide-angle view
- USB 3.0
- Full HD 1080p 30fps
- Control: USB (UVC), RS-232
- Pan/Tilt Angles: ±170°, Tilt: -30° to +90°
CHAT 150C Speakerphone
- ClearOne HDConferenceTM audio processing
- Three built-in microphone array with 360° pickup
- Large loudspeaker with Max Output Level: 85 dB SPL @ 1 meter
- Wideband audio frequency response (20Hz-20kHz)
Video Characteristics
- Resolution up to 1080p @ 30 fps (Rx)
- H.261, H.263, H.263+/++
- H.264/AVC High Profile – up to 6Mbps
- H.264/SVC (Skype for Business)
Audio Standards
- 20KHz: AAC-LD
- 14KHz: G.722.1 Annex C
- 7KHz: G.722, G.722.1
- 3.4KHz: G.711, G.723.1, G.728. G.729. AMR (3G)
Data Characteristics
- H.239 support for data sharing
- Resolution up to 1080p
- Data inputs via wireless, datapoint (HDMI-to-USB adapter)
Control
- Web-based management and control
- Telnet API for 3rd-party control
- AMX and Crestron modules
Directory Services
- 1000+ local number directory
- 10,000+ global number directory
- H.350 support (thru COLLABORATE Central)
- LDAP online directory support,
- OpenLDAP
- Active Search and Filter queries
Environments
- Operating Temperature: 32° to 104° F (0° to 40 °C)
- *At temps higher than 35°C, other environmental conditions may apply
Shipping Package
- Dimension: 21 x 14.5 x 12 (inches)
- Weight: 13 lbs
Part Number
- 930-3001-300
