A family of powerful Digital Signal Processors available in multiple versions with different combinations of audio inputs, audio outputs, network interfaces, peripherals, and software for configuration and control.
Key Highlights
- Combined Telco, VoIP, Skype for Business, USB, Dante into a single unit
- Fixed inputs and outputs per unit
- Reduced foot-print and power consumption
- New expansion bus (C-link) and new peripheral bus (P-link)
- Works in standalone & daisy-chain modes
- Stack of units will act as one combined system
- New hardware and DSP platform with ClearPath™ architecture
Applications
- VoIP audio conferencing
- POTS audio conferencing
- Skype® for Business audio conferencing
- PC based web, UC audio conferencing
- Trainings
- Dante audio networking
Environments
- Boardrooms
- Conference rooms
- Training rooms
- Lecture halls
- Courtrooms
- Auditoriums
- Telemedicine facilities
- Huddle rooms
A family of powerful Digital Signal Processors available in multiple versions with different combinations of audio inputs, audio outputs, network interfaces, peripherals, and software for configuration and control.
Mixer Types
CONVERGE Pro 2 128VTD- VoIP, Telco, and Dante
CONVERGE Pro 2 128VT- VoIP, and Telco
CONVERGE Pro 2 128V
Powerful Architecture
+ 12 Mic/Line inputs with AEC
+ Built-in VoIP: 5 lines
+ Built-in Skype for Business Client
+ Built-in Telco with ClearEffectTM processing
+ Built-in USB for PC-based conferencing
+ Built-in DanteTM for networked audio
+ Reduced footprint and power consumption
Scalable Connectivity
+ Standalone and daisy-chained system
+ Stack units for up to 144 Mic/Line inputs
+ Expansion bus “C-Link” with 64 channels
+ “P-Link” bus to connect peripheral devices
Configuration & Management
+ New CONSOLE® software
+ Auto-discovery of devices
+ MatrixView™ for entire system
+ FlowView™ for visualized audio signal paths
+ System monitoring and troubleshooting
Audio Signal Processing
+ Next-gen Acoustic Echo Cancellation processing
+ Distributed Echo Cancellation® on every mic input
+ Noise Cancellation with Adaptive-Ambience
+ Acoustic Intelligence with faster convergence
+ DARE™ feedback elimination
+ Advanced microphone gating
Any Application
+ VoIP/POTS conferencing
+ PC-based conferencing & Unified Communications
+ Microsoft Skype for Business audio conferencing
+ Sound Reinforcement applications
+ Dante™ for audio networking
A family of powerful Digital Signal Processors available in multiple versions with different combinations of audio inputs, audio outputs, network interfaces, peripherals, and software for configuration and control.
Mic/Line Inputs & Outputs
- Inputs: Balanced audio inputs, 3.81mm Orange color Phoenix/Euroblock type male header, Push-on mini-terminal block
- Outputs: Balanced audio outputs, 3.81mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
- Frequency Response: 20Hz – 22kHz @ +4dBu, +/- 0.5dBu
- EIN (Equivalent Input Noise): 20kHz BW, max gain, Rs = 150Ω, -126dBu
- THD + N (Total Harmonic Distortion + Noise): 20Hz – 22kHz @ +4dBu, line level, 0.006% 20Hz – 22kHz @ -56dBu, mic level, <0.04%
- Dynamic Range: 20Hz – 20kHz @ 0dB, >105dB
- Crosstalk (Mic/Line): Channel to Channel, stimulus at 20dBu to receptor at -56dBu, 1kHz, < -98dB
- Input Impedance: Balanced (line to ground), 2.2kΩ, 1%
- Nominal Input Level: Adjustable -56dB to 0dB, 7dB step coarse gain
- Maximum Input Level: -65dBu to 20dBu
- Phantom Power: 48V, Impedance 6.81kΩ
- Output Impedance: Balanced (line to ground), 95Ω, 1%
- Output Level: 0dBu (Nominal), 20dBu (Max), -40dBu (Selectable)
USB Audio
- Port Type: USB-B connector
- Audio: Digital Audio, 2 x 2 bidirectional channels
- Sample Rate: 48kHz
- Sample Bit Depth: 24-Bit
- Compatible: USB 2.0, USB 3.0
Telephone
- Port Type: RJ11
- FREQUENCY RESPONSE:
Mic/Line Input to Telephone Out: 250Hz – 3.4kHz , +/- 2dB, 4dBu
Telephone In to Mic/Line Out: 250Hz – 3.4kHz, +/- 2dB, -15dBu - THD + N:
Mic/Line Input to Telephone Out: <0.1% @ 4dBu
Telephone In to Mic/Line Out: <0.3% @ -15dBu - DYNAMIC RANGE:
Mic/Line Input to Telephone Out: >67dBu
Telephone In to Mic/Line Out: >87dBu - REN: Ringer Equivalent Number 0.2
- Transhybrid Balance: 30dB (1kHz, all AC terminations)
VoIP
- Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
- Codec: G.711 uLaw, G.711 ALaw, G.722
- SKYPE FOR BUSINESS (S4B):
- Microsoft Skype for Business support (1 client)
- Choose either regular VoIP or S4B through configuration
Ethernet
- Port Type: RJ-45, 10/100Mbps Ethernet Network, Auto Negotiation
- IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)
Dante™ Audio
- Port Type: RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports
- Audio: Digital Audio, 16 x 16 bidirectional channels
- Sample Rate: 48kHz / 96kHz
- Sample Bit Depth: 24-Bit
Amplifier Output (Applicable to 48T SKU)
- Speaker Output Port: Dual binding posts
- Audio: 2 Channels
- Output Power: 10W Max, 8Ω load
- Frequency Response: 20Hz – 22kHz @ +10dBu, +/- 0.5dBu
- THD + N: 20Hz – 22kHz @ +10dBu, 1W, <0.3%
- Dynamic Range: 20Hz – 22kHz @ 20dB, >102dB, with 20kHz digital low pass filter
- Crosstalk: Channel to Channel, stimulus at 20dBu, 10W output to receptor 8Ω load, 20Hz – 22kHz, < -70dB
Package (as applicable based on SKUs)
- Power Cord: 6 Ft (1.8M), Grounded, Qty 1
- Input Connectors: Terminal Block Connector, 3 Position (Orange), Qty 12
- Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
- GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
- C-Link Cable: RJ-45 To RJ-45 Cable, 18 Inches (0.45M), Qty 1
- Telephone cable: 12 Ft (3.6M), Qty 1
- VoIP Cable: RJ-45 To RJ-45, 7 Ft (2M), Qty 1
- USB Cable: USB Type A to Type B, 6 Ft (1.8M), Qty 1 Rack Ears: Pre-installed, Qty 2
- Screw/Washer Kit: Rack Decor, Qty 4
SKUs:
- CONVERGE Pro 2 128T
- CONVERGE Pro 2 128V
- CONVERGE Pro 2 128VT
- CONVERGE Pro 2 128VTD
- CONVERGE Pro 2 48T
- CONVERGE Pro 2 48VT
- CONVERGE Pro 2 48VTD
- CONVERGE Pro 2 120
- CONVERGE Pro 2 012
C-Link Expansion Bus
- Ports Type: RJ-45 (Cat5e or Cat6)
- C-Link In & Out: Proprietary Expansion Bus
- Audio: 64 Expansion channels
- Cable: Solid core, factory terminated Cat 5e or 6 cable
- Distance: Up to 150 Ft (200M)
P-Link Peripheral Bus
- Ports Type: RJ-45 (Cat5e or Cat6)
- P-Link In & Out: Proprietary Peripheral Bus
- PoE In:
P-Link In Port
PoE 802.3af Mode B, Midspan
Power on “spare pairs” 4,5 and 7,8
Input voltage range: 48V to 56V - Audio:
Up to 3 Beamforming Micropphone Array 2 (BFM2) units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units - Cable: Solid core, factory terminated Cat 5e or 6 cable
- Distance: Up to 200 Ft (45M)
- Long Distance P-Link:
Increases P-Link distance from 200 Ft to 650 Ft
650 Ft (200M) maximum cable distance between any two units
Cat6, 550 MHz, 23 AWG, solid conductor cable
Do not use Copper Clad Aluminum (CCA) cable
Available only for BFM2 peripheral units
48V PoE Midspan Mode B power injector for 1 BFM2 unit
56V PoE Midspan Mode B power injector for 3 BFM2 units
RS232
- Port Type: DB9 Female
- Settings: 9600/19200/38400/57600/115200 Baud; Serial Echo; Flow Control
- Support: Serial commands
GPIO
- Port Type: 5.08mm Green color Phoenix/Euroblock type male header
- Support: Control, Status, Variable Voltage Control
- Power Pin: 5V DC @ 350mA Power Source
- Pin 1 to 4:
Open Collector Outputs: 40VDC @ 250mA
Active Outputs (Source/Sink): 5VDC @25mA
Logic Inputs: 40.2kΩ pull up
Variable Voltage Control Inputs: 5VDC max - Ground Pin: GND
USB Control

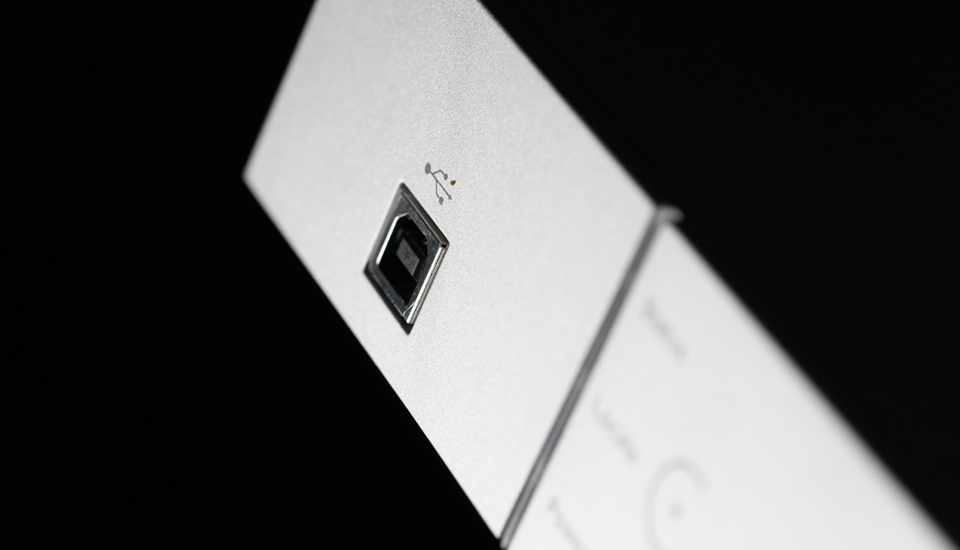

- Port Type: USB-B connector
- Location: Front Panel
- Compatible: USB 2.0, USB 3.0
LEDs
- Location: Front Panel
- Status LED: Off:
- Off: Unit still initializing
- Blue - Fast Blinking: Stack Syncing in progress
- Blue - Slow Blinking: Unit not configured
- Blue - Solid: Configured unit
- Red - Fast Blinking: Stack Sync error - Locate LED: Blue - Blinking: Unit “Locate” command received
- Power LED: Blue - Solid: Unit is powered on
Touch Sensor
- Sensor Type: Capacitive Touch Button
- Location: Front Panel
Location: Front Panel
- Port Type: AC Inlet
- Mains Voltage: 100-240V AC, 50/60Hz
- Power Consumption: 50 Watts Typical
- Thermal: 170 BTU/Hr Typical
- Operating Temperature: 14°F/-10°C to 104°F/40°C Ambient Temperature
Dimension & Weight
- RU size: 1 RU
- Width x Depth x Height:
1. Without rack-ears: 17 x 10.73 x 1.72in or 43.2 x 27.3 x 4.4cm
2. With rack-ears: 19 x 10.73 x 1.72” or 48.3 x 27.3 x 4.4cm - Unit Weight: 9.3 lbs (Approximately)
- Shipping Weight: 13.8 lbs (Approximately)
