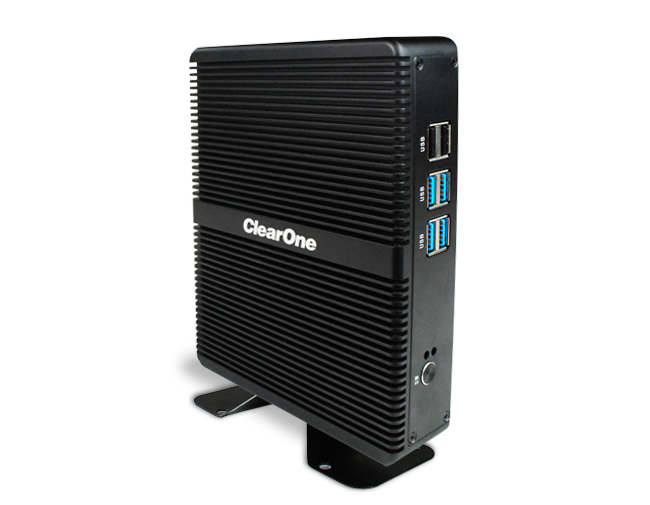

CONVERGENCE InSite Server | Network Management Solutions

Set up CONVERGENCE hassle free with one InSite Server for multiple subnets and VLANs.

The CONVERGENCE Local Agent software comes pre-installed and ready to deploy.
InSite Server setup and registration is simple and painless using a web browser.
Get up and running quickly with auto discovery of all supported devices on multiple subnets without the need for labor-intensive, individual device registration.
Plenty of internal storage for InSite logs and backup configuration files of managed devices.
Small footprint with a solid-state drive, auto power on, and a fanless enclosure for 24/7 high reliability
Includes extra ports for additional network connections, or optional keyboard, video, and mouse for servicing.
InSite Server is a convenient alternative to the downloadable CONVERGENCE Local Agent software that must be self-installed.
Integrates with third-party management systems via a RESTful web interface.
The Local Agent software is the foundation of a CONVERGENCE AV Manager system. Using the InSite Server makes laying that foundation fast and firm.

Dimensions: 17.2 x 12.5 x 3.8 cm (6.77 x 4.92 x 1.5 in.)
Weight: 1.2 kg (2.65 lb)
Case Material: Aluminum alloy
Power: 12V power input, comes with 12V 5A power adapter; On/Off switch and Last State Auto Power On
Cooling: Passive Heat Sink (fanless)
Connectivity: USB 3.0 x 4, USB 2.0 x 2, LAN Port (1 x RJ45, Gigabit Ethernet)
Video: HDMI, VGA dual display (not required for setup or use)
2-Year Warranty
Serves up to 4,000 devices

Central Hub Connections: CONVERGENCE™ Cloud AV Manager or CONVERGENCE™ Enterprise AV Manager.
Web server protocol: HTTP (port 8080)
Minimum broadband Internet connection speed: 256 Kbps (512 Kbps recommended)
Remote access: Cloud AV Manager, Enterprise AV Manager, SSH, VPN
UDP and TCP audio device packet data on ports 3602, 3601, and 4912
UDP broadcast, UDP unicast and direct TCP connection via scanning, on multiple subnets
FTP for auto and remote updates
