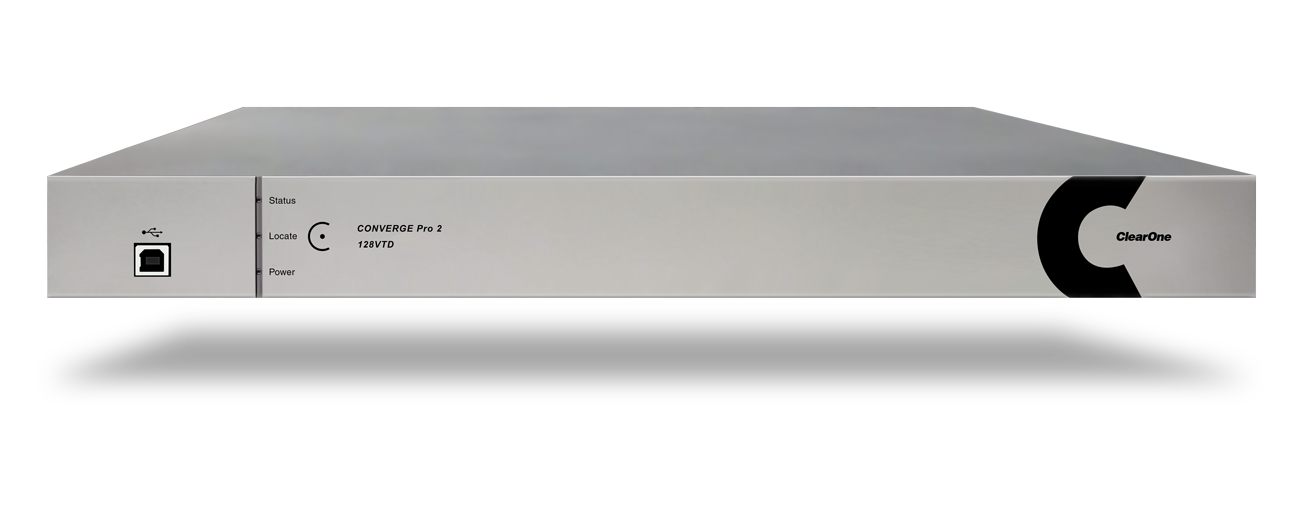

CONVERGE® Pro 2 128VTD

An advanced multi-channel microphone automixer with built-in support for Dante audio networking, a SIP interface, a Telco interface, and the latest audio DSP algorithms.

Contact Us
CONVERGE® Pro 2 128VTD
Edit

Supports SIP, Dante®, 12 configurable mic/line audio inputs, 8 configurable mic/line audio outputs, built-in USB audio, and a Telco interface for POTS calls.

Key Highlights

  • Built-in Native Camera Tracking for ClearOne Unite cameras and many 3rd party cameras using RS-232 and Ethernet VISCA over IP.
  • 12 mic/line inputs and 8 mic/line outputs.
  • Next-gen Acoustic Echo Cancellation (AEC) on every mic input..
  • Support for SIP-based conferencing up to 5 lines and 5 calls based on line configuration.
  • 16 Dante inputs and 16 Dante outputs for audio networking.
  • Analog Telco interface.
  • Built-in USB audio.
  • Built-in DARE™ algorithm for dynamic feedback elimination.
  • Native Audio based VISCA camera control.
  • C-Link and P-Link enable easy addition of DSPs and peripherals.
  • Configure an entire system of C-linked DSPs with CONVERGE CONSOLE® AI software.
  • Flexible control options include Touch-Panel Controller, BYOD dialer apps or 3rd party control modules.
  • Reduced foot-print and power consumption.
  • Noise Cancellation with Adaptive-Ambience.
  • Daisy-chain the CONVERGE Pro 2 with the BMA 360, DIALOG® 20 USB 2-Channel Wireless Microphone System, and other peripheral devices through P-Link.

Applications

  • SIP Conferencing
  • POTS Conferencing
  • Audio Recording
  • Pre-recorded Digital Audio
  • Audio Networking over a LAN
  • Web Conferencing
  • UC Audio Conferencing
  • Sound Reinforcement
  • Bridge Web Conferences

Workspaces

  • Conference Rooms
  • Training Rooms
  • Lecture Halls
  • Courtrooms
  • Telemedicine Theaters
  • Houses of Worship

Supports SIP, Dante®, 12 configurable mic/line audio inputs, 8 configurable mic/line audio outputs, built-in USB audio, and a Telco interface for POTS calls.

PART NUMBER

  • 910-3200-009-D

CAMERA TRACKING

  • Supported Cameras: Unite 150, Unite 200, Unite 160, Unite 260 (One Camera per DSP)
  • Communication Protocol: VISCA
  • Communication options: Serial (RS-232) or Ethernet (VISCA over IP)

MIC/LINE INPUTS & OUTPUTS

  • Inputs: Balanced audio inputs, 3.81 mm Orange color Phoenix/Euroblock type male header, Push-on miniterminal block
  • Outputs: Balanced audio outputs, 3.81 mm Black color Phoenix/Euroblock type male header, Push-on mini-terminal block
  • Frequency Response: 20 Hz – 22 kHz @ +4 dBu, +/- 0.5 dBu
  • EIN (Equivalent Input Noise): 20 kHz BW, max gain, Rs = 150 Ω, -126 dBu
  • THD + N (Total Harmonic Distortion + Noise):
    • 20 Hz – 22 kHz @ +4 dBu, line level, 0.006 %
    • 20 Hz – 22 kHz @ -56 dBu, mic level, < 0.04 %
  • Dynamic Range: 20 Hz – 20 kHz @ 0 dB, > 105 dB
  • Crosstalk (Mic/Line): Channel to Channel, stimulus at 20 dBu to receptor at -56 dBu, 1 kHz, < -98 dB
  • Input Impedance: Balanced (line to ground), 2.2 kΩ, 1 %
  • Nominal Input Level: Adjustable -56 dB to 0 dB, 7 dB step coarse gain
  • Maximum Input Level: -65 dBu to 20 dBu
  • Phantom Power: 48 V, Impedance 6.81 kΩ
  • Output Impedance: Balanced (line to ground), 95 Ω, 1 %
  • Output Level: 0 dBu (Nominal), 20 dBu (Max), -40 dBu (Selectable)

USB AUDIO

  • Port Type: USB-B connector
  • Audio: Digital Audio, 2 x 2 bidirectional channels
  • Sample Rate: 48 kHz
  • Sample Bit Depth: 24-Bit
  • Compatible: USB 2.0, USB 3.0

TELEPHONE

  • Port Type: RJ-11
  • Frequency Response:
  • Mic/Line Input to Telephone Out: 250 Hz – 3.4 kHz , +/- 2 dB, 4 dBu
  • Telephone In to Mic/Line Out: 250 Hz – 3.4 kHz, +/- 2 dB, -15 dBu
  • THD + N:
    • Mic/Line Input to Telephone Out: < 0.1 % @ 4 dBu
    • Telephone In to Mic/Line Out: < 0.3 % @ -15 dBu
  • Dynamic Range:
    • Mic/Line Input to Telephone Out: > 67 dBu
    • Telephone In to Mic/Line Out: > 87 dBu
    • REN: Ringer Equivalent Number 0.2
  • Transhybrid Balance: 30 dB (1 kHz, all AC terminations)

SIP

  • Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
  • Audio: 5 Lines
  • Codec: G.711 uLaw, G.711 ALaw, G.722

ETHERNET

  • Port Type: RJ-45, 10/100 Mbps Ethernet Network, Auto Negotiation
  • IP address: IPv4 (IPv6 upgradeable through future s/w, f/w upgrade)

DANTE™ and AES67 AUDIO

  • Port Type: RJ-45 Gigabit Ethernet connectors for Primary and Secondary Ports
  • Audio: Digital Audio, 16 x 16 bidirectional channels
  • Sample Rate: 48 kHz / 96 kHz
  • Sample Bit Depth: 24-Bit
  • AES67 Mode: Enabled through Dante controller software

C-LINK EXPANSION BUS

  • Ports Type: RJ-45 (Cat 5e or Cat 6)
  • C-Link In & Out: Proprietary Expansion Bus
  • Audio: 64 Expansion channels
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance:Up to 80’ (24 m)

P-LINK PERIPHERAL BUS

  • Ports Type: RJ-45 (Cat 5e or Cat 6)
  • P-Link Out: Proprietary Peripheral Bus
  • PoE In:
    • PoE 802.3 af Mode B, Midspan
    • Power on “spare pairs” 4, 5 and 7, 8
    • Input voltage range: 48 V to 56 V
  • Audio: Up to 3 BMA CT units + up to 3 DIALOG 20 Wireless Receiver units + Up to 3 USB Expander units + Up to 3 GPIO Expander units
  • Cable: Solid core, factory terminated Cat 5e or 6 cable
  • Distance: Up to 200 ft (60 m)

RS-232

  • Port Type: DB9 Female
  • Settings: 9600/19200/38400/57600/115200 Baud;
  • Serial Echo; Flow Control
  • Support: Serial commands or VISCA camera control

GPIO

  • Port Type: 5.08 mm Green color Phoenix/Euroblock type male header
  • Support: Control, Status, Variable Voltage Control
  • Power Pin: 5 VDC @ 350 mA Power Source
  • Pin 1 to 4:
    • Open Collector Outputs: 40 VDC @ 250 mA
    • Active Outputs (Source/Sink): 5 VDC @25 mA
    • Logic Inputs: 40.2 kΩ pull up
    • Variable Voltage Control Inputs: 5 VDC max
  • Ground Pin: GND

USB CONTROL

  • Port Type: USB-B connector
  • Location: Front Panel
  • Compatible: USB 2.0, USB 3.0

LEDs

  • Location: Front Panel
  • Status LED:
    • Off: Unit still initializing
    • Blue - Fast Blinking: Stack Syncing in progress
    • Blue - Slow Blinking: Unit not configured
    • Blue - Solid: Configured unit
    • Red - Fast Blinking: Stack Sync error
  • Locate LED: Blue - Blinking: Unit “Locate” command received
  • Power LED: Blue - Solid: Unit is powered on

LOCATE BUTTON

  • Sensor Type: Capacitive Touch Button
  • Location: Front Panel

POWER & THERMAL

  • Port Type: AC Inlet
  • Mains Voltage: 100-240 VAC, 50/60 Hz
  • Power Consumption: 50 Watts Typical
  • Thermal: 170 BTU/Hr Typical
  • Operating Temperature: 14 °F (-10 °C) to 104° F (40 °C) Ambient Temperature

DIMENSION & WEIGHT

  • RU size: 1 RU
  • Width x Depth x Height:
    • Without rack-ears: 17.1 x 10.7 x 1.7 “ (431 x 273 x 44 mm)
    • With rack-ears: 19.1 x 10.7 x 1.7 “ (483 x 273 x 44 mm)
  • Unit Weight: 9.3 lbs (4.2 Kg) (Approximately)
  • Shipping Weight: 13.8 lbs (6.3 Kg) (Approximately)

PACKAGE

  • Power Cord: 6' (1.8 m), Grounded, Qty 1
  • Input Connectors: Terminal Block Connector, 4 Position (Orange), Qty 12
  • Output Connectors: Terminal Block Connector, 3 Position (Black), Qty 8
  • GPIO Connector: Terminal Block Connector, 6 Position (Green), Qty 1
  • C-Link Cable: RJ-45 To RJ-45 Cable, 18 in (45.7 cm), Qty 1
  • Network Cable: RJ-45 To RJ-45, 7 ‘ (2 m), Qty 1
  • USB Cable: USB Type A to Type B, 6 ‘ (1.8 m), Qty 1
  • Rack Ears: Pre-installed, Qty 2
  • Screw/Washer Kit: Rack Decor, Qty 4

Related Products

Other products that may interest you

Converge Pro 2 128VTD FAQs

What distinguishes the CONVERGE Pro 2 128VTD from other models in the series?

The key distinguishing feature of the 128VTD is its built-in Dante audio networking capability, offering 16 Dante inputs and 16 Dante outputs. Like the 128VT, it also includes SIP conferencing support, analog Telco interface, 12 mic/line inputs, 8 mic/line outputs, and USB audio connectivity.

How many audio channels can I route through the Dante network with the CONVERGE Pro 2 128VTD?

The CONVERGE Pro 2 128VTD supports 16 Dante inputs and 16 Dante outputs for audio networking, allowing you to route multiple audio channels over your LAN using Dante protocol. This is in addition to the 12 mic/line inputs and 8 mic/line outputs available through traditional connections.

Can I integrate the CONVERGE Pro 2 128VTD with existing conferencing systems?

Yes, the 128VTD offers extensive integration options including SIP-based conferencing (up to 5 lines and calls), POTS calls through the analog Telco interface, web conferencing, and UC audio conferencing. The Dante capability adds another layer of integration possibilities with other Dante-enabled devices on your network.

What control and configuration options are available for the CONVERGE Pro 2 128VTD?

The system can be configured using CONVERGE CONSOLE AI software, which manages all C-linked DSPs. For day-to-day control, you have multiple options including a Touch-Panel Controller, BYOD dialer apps, and third-party control modules. The system also supports Native Camera Tracking for both ClearOne Unite and many third-party cameras using RS-232 and Ethernet VISCA over IP.
