Key Highlights

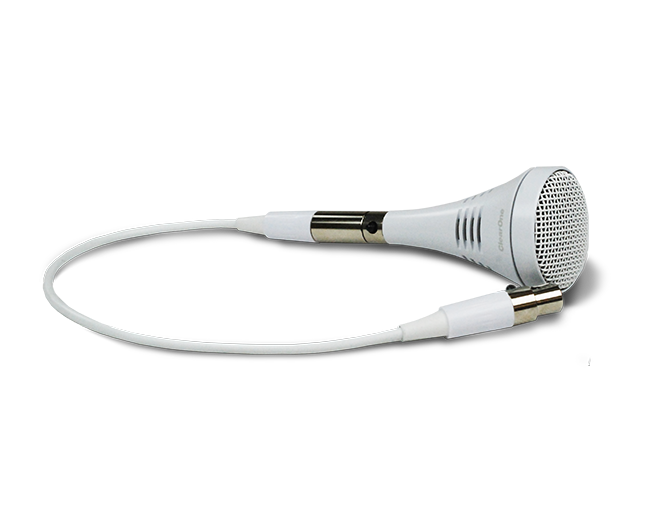

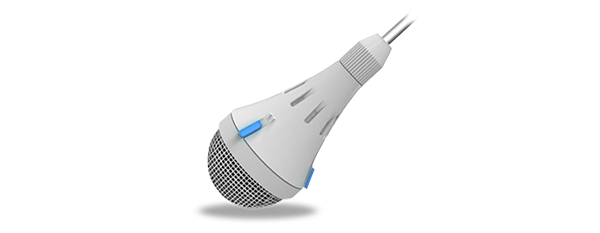

- Easily installed and affordable popular tri-element ceiling microphone array
- Enhances any conferencing application which demands high-quality audio, delivering exceptional audio quality.
- Provides rich sound with three wide-range mics mounted together into a single-unit array, maintaining 360-degree coverage from 15 to up to 20 ft.
- Optimized for speech intelligibility with steerable audio pick-up using a DSP Mixer.
- Superb audio quality with wide bandwidth, high SNR, and 100% shielding against RF interference allows use for multiple applications.
- Perfect match for the CONVERGE® Huddle DSP; and included in Versa Pro BYOD Collaboration solutions with the Huddle and UNITE® cameras.
- Works with ClearOne and other 3rd-party DSP mixers with quick and easy installation.
- Extremely flexible placement options with up to 300 FT mic-to-mixer connections on CAT5e/CAT6.
- Effectively reduces room reverberation and noise, and minimizes noise pickup from ceiling sources.
- Gets microphones “off the table” area while maintaining speech quality and intelligibility.
- Includes drop down cables for 0”, 12” and 24” to match various ceiling heights.
- Sleek, unobtrusive design (3.3" x 1.5") comes in White or Black color options.
Applications
- Audio conferencing
- Video collaboration
- Sound reinforcement
Workspaces
- Huddle spaces
- Conference rooms
- Boardrooms
- Training rooms
- Lecture Halls
- Courtrooms
- Telemedicine theatres
ACOUSTIC CHARACTERISTICS
- Polar Pattern: Cardioid
- Dynamic Range: 80 dB, 1 kHz @ max SPL
- Signal/Noise Ratio: 60 dBA, 1kHz @ 1Pa
- Frequency Response: 100 Hz - 12kHz
- Sensitivity: 114 mV/Pa
ELECTRICAL CHARACTERISTICS
- Element: Fixed-charge back plate permanently polarized condenser
- Phantom Power Requirement: 12-52 vdc, 2 mA typical Impedance: 200 Ω
CABLES INCLUDED
- 12-inch and 24-inch 4-pin mini-XLR drop-down cable
- 25-foot RJ45 male to RJ45 male CAT5e
- RJ45 receptacle to mixer adapter cable
Mounting
- Ceiling tile pass-through mounting assembly
- Max cable length from array to mixer: 300 ft (91.44m)
MECHANICAL
- DIMENSIONS - (W x D xH): 3.3" x 1.5" (83.8 mm x 38.1 mm)
- WEIGHT- 2.2 lbs (1 kg)
ENVIRONMENTAL OPERATING TEMPERATURE
- -4º to 158º F (-20º to 70º C)
PART NUMBERS
- 910-001-013-W - White Ceiling Microphone Array kit for CONVERGE Pro and INTERACT Pro (includes RJ45 receptacle to Mini-Phoenix mixer adapter)
- 910-001-013-B - Black Ceiling Microphone Array kit for CONVERGE Pro and INTERACT Pro (includes RJ45 receptacle to Mini-Phoenix mixer adapter)
- 910-001-014-W - White Ceiling Microphone Array kit for INTERACT AT (includes RJ45 receptacle to XLR-M mixer adapter)
- 910-001-014-B - Black Ceiling Microphone Array kit for INTERACT AT (includes RJ45 receptacle to XLR-M mixer adapter)
(Each kit includes Microphone Array Module, Mounting base, 12 and 24 inch drop-down cables, 25 foot RJ45 plenum rated CAT5e cable, RJ45 receptacle to mixer adapter cable.)
