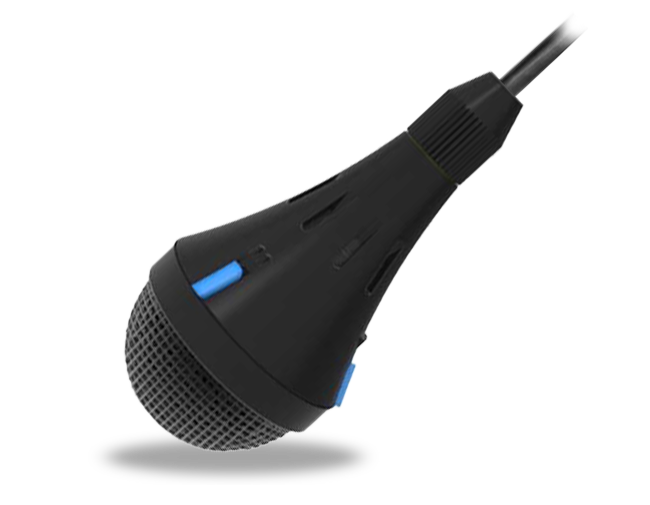

Ceiling Microphone Array Dante
An advanced tri-element Dante ceiling microphone array with superior sound quality and adjustability for desired height.
A built-in Dante audio networking interface, supports daisy-chain options for conferencing, sound reinforcement and audio-distribution applications.
Key Highlights
- Most competitively-prices, "steerable" tri-element hanging mic arrays with digital Dante™ interface.
- New Significantly wider coverage area than original ClearOne CMA for larger spaces, coveringsystem covering up to 4 rooms with a single CMA system.
- Arrays offer superior audio quality with wide bandwidth & low noise, optimized for speech-intelligibility.
- Gets microphones “off the table” area while maintaining speech quality and intelligibility required for successful conferences.
- At just 1.5” x 3”, it is the smallest & most unobtrusive multi-element microphone array
- “Pre-integrated” to work seamlessly with ClearOne Audio & Video products; while also compatible with other professional systems
- Plenum-rated for flexible placement options.
- Multicolor LED indicators on every mic element for system status.
- Numbered Mic elements for ease of set-up, management & troubleshooting.
- Completely adjustable drop-down cable- between 0 and 7 feet to match most room environments.
- Robustly Shielded against RF & Electrical interferences.
- Attractive Capsules offered in Black or White to compliment most room environments .
Applications
- Audio conferencing
- Video collaboration
- Sound reinforcement
- Audio distribution
Workspaces
- Huddle spaces
- Boardrooms
- Conference rooms
- Training rooms
- Lecture halls
- Courtrooms
- Telemedicine facilities
A built-in Dante audio networking interface, supports daisy-chain options for conferencing, sound reinforcement and audio-distribution applications.
ACOUSTIC CHARACTERISTICS
- Element: Condenser (Electret)
- Polar Pattern: 3 X 120° Cardioid Patterns, covering 360°
- Signal/Noise Ratio: 74 dBA @ 1 kHz
- Frequency Response: 70 Hz – 20 kHz
- Sensitivity: -37dB @ 1 kHz (0 dB = 1V / Pa)
- Max Sound Pressure Level: 120 dB SPL
- RF Immunity: 100% immunity, fully balanced twisted pair throughout
POWER & THERMAL
- Power Type: PoE
- Port Type: RJ-45
- Power Source: PoE power injector, PoE Ethernet Network Switch
- PoE In: IEEE 802.3af CLASS III, Mode A or B Modes A and B refer to whether power can be supplied over data pairs in the CAT5 cable. Mode A means power can be supplied by either spare or data pairs, and Mode B means power can only be supplied by spare pair
- Mains Voltage: 100-240V AC, 50/60Hz
- Impedance: 200 Ω
- Power Consumption: 8.5 Watts Typical with 4 Mic Capsules
- Operating Temperature: 41º to 104º F (5º to 40º C)
CABLES
- Junction to Interface/Junction Box: RJ45 CAT5e/CAT6 24AWG (max 33 ft)
- Interface Box to Network Switch: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
- Network Switch to Dante DSP Mixer: RJ45 CAT5e/CAT6 24AWG (max 330 feet)
- Junction Box to Mic Capsule: Proprietary Mic Array cable (max 7 ft)
MECHANICAL
- DIMENSIONS (W x D x H)
- Mic Capsule: 1.7" x 1.7" x 86.6" (42 mm x 42 mm x 2200 mm)
- Digital Dante Interface: 6.8" x 6.7" x 1.7" (172 mm x 169 mm x 43 mm)
- Digital Junction: 4" x 3.7" x 1.4" (102 mm x 93 mm x 35 mm) - WEIGHT
- Mic Capsule: 6 oz (170 g)
- Digital Dante Interface: 21.6 oz (612 g)
- Digital Junction: 7.2 oz (204 g)
MIC ARRAY COLOR FINISH
- White or Black
COMPLIANCE
- FCC, IC, CE, RoHs, WEEE, UL2043 (plenum rated)
Related Products
Other products that may interest you
Ceiling Microphone Array Dante FAQs
What advantages does Dante audio networking provide?
Dante technology enables digital audio transmission over standard ethernet networks, reducing installation complexity and costs. It allows for flexible routing, easy scalability, and maintains pristine audio quality throughout the digital signal path.
What's the setup process for integrating with an existing Dante network?
Setup involves connecting the microphone array to your network via standard Cat5e/Cat6 cable, assigning it through Dante Controller software, and configuring routing preferences. The device is automatically discovered on the network for straightforward integration.
Can this be used alongside other Dante-enabled devices?
Yes, the Ceiling Microphone Array Dante seamlessly integrates with other Dante-enabled devices on the same network. This allows for flexible audio routing and easy integration with Dante-compatible DSPs, mixers, and speakers.
What network infrastructure is required for optimal performance?
For best performance, we recommend a Gigabit ethernet network with Quality of Service (QoS) enabled on network switches. The system requires Cat5e cabling minimum, though Cat6 or better is recommended for optimal performance.
