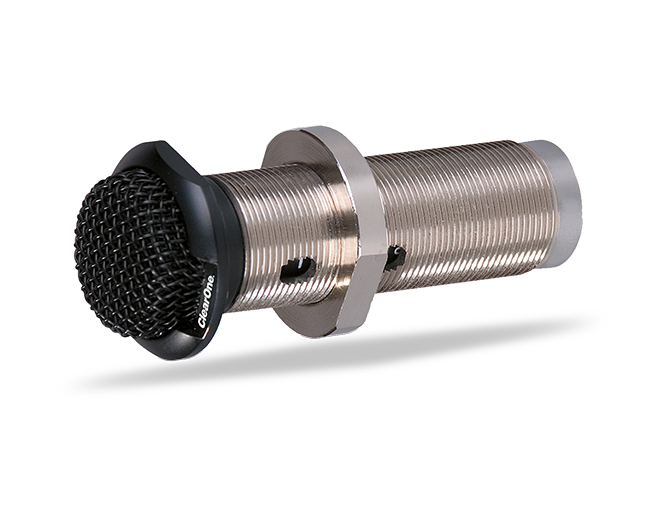

Button Microphone

Discreet tabletop microphones with excellent pick-up range. Compact and appealing, these button microphones are ideal for custom applications where the microphones are permanently built into the table or panel. They provide outstanding pickup range in either an omni- or uni-directional version.

Contact Us
Edit

Discreet tabletop mounting with or without shock isolation.

Key Highlights

  • Unobtrusive, discreet design.
  • Aesthetically pleasing, designed for built-in applications.
  • Excellent pickup range in omni- or unidirectional model.
  • Perfect complement to ClearOne’s industry-leading professional conferencing systems.
  • Designed with cell-phone-friendly technology to effectively reject radio frequency interference.
  • Discreet tabletop mounting with or without shock isolation.
  • Excellent pickup range in omni- or uni-directional model.

Applications

  • Audio Conferencing
  • Video or Web Conferencing
  • Sound Reinforcement

Workspaces

  • Conference Rooms
  • Boardrooms
  • Training Rooms
  • Courtrooms
  • Distance Learning Centers
  • Hospitality

Discreet tabletop mounting with or without shock isolation.

Unidirectional Mic

  • Type: Electret Condenser
  • Frequency Response: 40 to 12,000Hz
  • Polar Pattern: Cardioid
  • Sensitivity (at 1,000Hz): -48 ± 3dB* (3.98mV)* 0dB= 1V/μbar
  • Attenuation Switch: -10dB • Low Frequency Roll-off: 80Hz
  • Impedance: 220Ω
  • Max. SPL For 1% T.H.D: 140dB
  • Signal To Noise Ratio: 70dB
  • Current Consumption: ≤ 3mA
  • Power Supply: 9-52 VDC phantom power
  • Output Connector: XLR-M type (power module)

Omnidirectional Mic

  • Type: Electret Condenser
  • Frequency Response: 40 to 17,000Hz
  • Polar Pattern: Omnidirectional
  • Sensitivity (at 1,000Hz): -48 ± 3dB* (3.98mV)* 0dB = 1V/μbar
  • Attenuation Switch: -10dB • Low Frequency Roll-off: 80Hz
  • Impedance: 220Ω
  • Max. SPL For 1% T.H.D: 140dB
  • Signal To Noise Ratio: 68dB
  • Current Consumption: ≤ 3mA
  • Power Supply: 9 - 52 VDC phantom power
  • Output Connector: XLR-M type (power module)

Part Numbers

  • 910-103-164 Unidirectional Button Mic - Black
  • 910-103-162 Omnidirectional Button Mic - Black

Related Products

Other products that may interest you

Button Microphone FAQs

What makes ClearOne button microphones unique?

They offer excellent pickup range and come in omni-directional or uni-directional models with discreet tabletop mounting options.

Are ClearOne button microphones suitable for all conference room sizes?

Yes, their excellent pickup range makes them suitable for various room sizes and configurations.

What type of installation do ClearOne button microphones require?

They are designed for discreet tabletop mounting, making installation easy and unobtrusive.

Can these microphones be used for professional teleconferencing?

Yes, their superior pickup range and design make them ideal for professional teleconferencing applications.
