CHAT® 150 & CHATAttach® 150

Group USB speakerphone, powered by ClearOne’s market leading HDConference™ audio, enhances your web conferencing, unified communications and video conferencing experience in your personal workspace, huddle rooms, small and medium-size conference rooms with crystal-clear audio for business class performance.

Contact Us

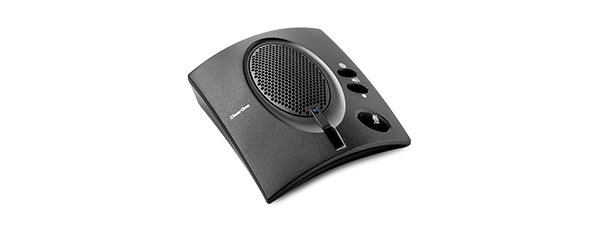

ClearOne CHAT® 150 & CHATAttach® 150 Group USB speakerphone

COMPATIBLE WITH




Enhance Your Cloud Collaboration

Key Highlights

  • Distributed Echo Cancellation® and noise cancellation along with full-duplex performance and automatic level controls guarantee your conference calls to be natural with unmatched audio clarity free of any distractions
  • Connect the CHAT 150 or the CHATAttach 150 to laptops & PCs via USB for handsfree audio
  • First-mic priority intelligently activates only the microphone closest to the person speaking, preventing the amplification of ambient noise and room reflections
  • Daisy-chainable design can expand up to two complete speakerphones to cover medium-sized rooms. Full speakerphone expandability allows both mic and speaker to cover the entire room along with flexibility of control using any speakerphone

Applications

  • Unified communications
  • Video conferencing
  • Web conferencing

Workspaces

  • Huddle spaces
  • Conference rooms

System Requirements

  • Microsoft Windows 8, 10
  • Mac OS

Connections

  • USB:
    - Version 2.0 Compatible
    - Type: Mini-B Female
  • Keyed Connector:
    - Keyed RJ-45 (8-conductor)

Line Input/Output via vC Breakout Box (BOB)

  • Frequency Response:
    - 20Hz - 20 kHz +/- 1 dB
    - Maximum Level: +6 dBu
    - Input Impedance: 10 kΩ
    - Output Impendance: 50 Ω

Controls

  • Volume Up
  • Volume Down
  • Microphone Mute

Audio

  • Speaker:
    - Bandwidth: 190 Hz - 20 kHz
    - Max Output Level: 85 dB SPL @ 1 foot (0.30 meter)
  • Microphone:
    - Bandwidth: 50 Hz - 7.75 kHz

Environmental

  • Operting Temperature:
    - 41 - 104° F (5 - 40° C)

Processing

  • Full Duplex
  • Distributed Echo Cancellation (D.E.C.)®
  • Noise Cancellation (NC)
  • Automatic Level Control (ALC)
  • Line Echo Cancellation (LEC) - Selectable
  • First-Mic Priority

Power

  • USB:
    - 5 VDC @ 500 mA Maximum
  • External:
    - Input: 100 - 240 VAC •Output: 9 VDC @ 560 mA
    - Tip: Power
    - Ring: Ground

Mechanical

  • Dimensions (W x D x H):
    7.4” x 7.4” x 1.8” (18.8 cm x 18.8 cm x 4.6 cm)
  • Weight:
    1.17 Ibs (0.53 kg)

Compliance

  • RoHS
  • REACH
  • FCC Class A Part 15
  • CES-003
  • CE Listed
  • UL Listed

Model numbers

  • 910-156-200 CHAT 150 USB:
    • Single CHAT 150 and Connecting Cable
  • 910-156-200-00 CHATAttach 150:
    • Two (2) CHAT 150 Devices, Connecting Cables and Power Supply
  • 910-156-222 CHAT 150 Avaya:
    • CHAT 150 and Connecting Cable to Avaya Enterprise Phone
  • 910-156-230 CHAT 150 VC:
    • CHAT 150 and Cable to Video Conference System

Accessory Part numbers

  • 860-156-230L CHAT 150 VC Accessory Kit:
    • Includes Video Conferencing Breakout Box, Power Adapter, International Power Clips, RCA Connection Cable, 25’ Link Cable
  • 860-156-222L CHAT 150 Avaya Accessory Kit:
    • Includes Breakout Box for 2410, 2420, 4610 and 4621 Telephone Handsets, Power Adpater, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
  • 860-156-220L CHAT 150 Cisco Accessory Kit:
    • Includes Breakout Box for 7940, 7960, and 7970 Telephones, Power Adapter, International Power Clips, RJ-9/RJ-9 Telephone Cable, 25’ Link Cable
  • 910-156-225 CHATAttach expansion Kit:
    • Includes Cables, Power Supply and Quick Start Guide to Update Two (2) CHAT 150 Devices to CHATAttach
