Key Highlights

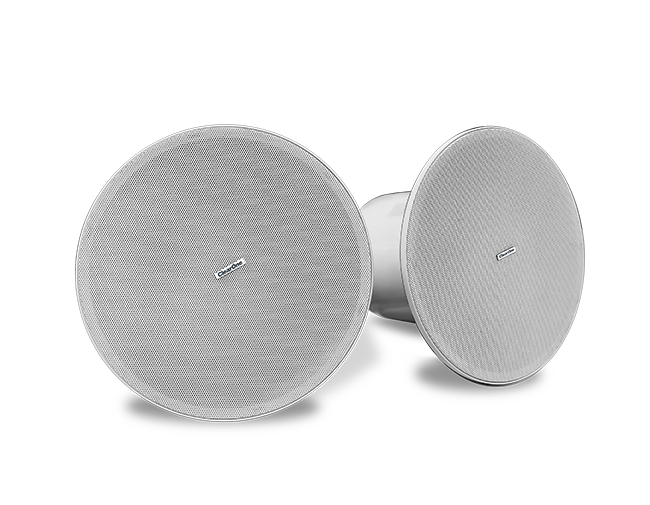

- 2-Way Ceiling Speaker: Features a metal back can and a 6.5-inch polypropylene woofer with a moisture-resistant coating for enhanced durability.
- Wide Frequency Range: Offers a frequency response of 50 Hz to 20 kHz, providing clear and full-range audio for various applications.
- High Power Handling: Capable of handling 60 watts RMS and 120 watts peak, ensuring robust performance in different settings.
- Nominal Sensitivity: Delivers 90 dB at 1 watt, measured from 1 meter, offering efficient sound output.
- Impedance and Transformer Taps: Operates at a nominal impedance of 8 ohms, with multiple transformer tap options for both 70 V and 100 V systems.
- Overload Protection: Equipped with a full-range power limiter to protect the tweeter, woofer, and crossover from damage when using the 8-ohm direct input.
- Compact Dimensions: Measures 9.25 inches in diameter and 6.3 inches in depth, making it suitable for standard ceiling installations.
- Lightweight Design: Weighs 4.85 lbs (2.2 kg) per speaker, facilitating easy installation and reducing load on ceiling structures.
Part Number
- 910-151-001-01
Frequency Range
- 50 Hz - 20 kHz
Power
- 100 V: 7.5 W, 15 W, 30 W, selectable
- 70 V: 3.8 W, 7.5 W, 15 W, 30 W, selectable
- 8 Ω: 60 W
Sensitivity
- 90 dB, 1 W @ 1 m
Impedance
- 8 ohms
Speaker Type
- Conical Dispersion: 120°
- 2-way Coaxial
- Woofer Diameter: 6.5 in. (165 mm)
- Tweeter Diameter: 1.57 in. (40 mm)
Enclosure Material and Finish
- ABS, White
- Grille: White, magnetic attachment to enclosure
Dimensions and Weight
- 9.25 x 6.3 in. (235 x 160 mm)
- Hole cut diameter: 8.07 in (205 mm)
- Maximum ceiling (or ceiling tile) thickness:1.57 in. (40 mm)
- 4.85 lbs (2.2 kg)
Magnetic Grille Fastener Life
- Life of the speaker
Maximum Operating Temperature
- 80 °C
