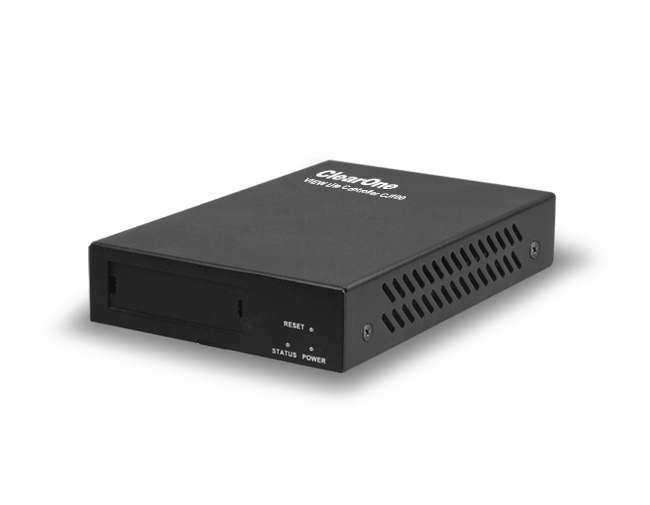

IP control interface unit for VIEW Lite Encoder and Decoder for a dedicated IP network Flexible power options with PoE and DC
Key Highlights
- Very low end-to-end (glass-to-glass) latency of around 1.5 frames / 25 ms
- Up to 4K60 resolution support
- PoE and DC power options
- High bandwidth requirement of around 850 Mbps
- USB HID for source control through keyboard and mouse
Applications
- Corporate announcements
- Video walls
- Digital signage
- Command centers
Workspaces
- Workplaces
- Schools
- Hospitality centers
- Entertainment centers
- Transportation hubs
- Command & Control centers
IP control interface unit for VIEW Lite Encoder and Decoder for a dedicated IP network Flexible power options with PoE and DC
Control
- Serial RS232 Port:
- RS232 Pins TX, RX, G are used for device troubleshooting only
- Pins G, RX, TX are used for controlling, configuring and managing system
- Pins G, 12V are used for providing a 12 VDC 0.5 A output - LAN1 (AV/PoE):
- RJ-45 Ethernet jack with PoE support
- IEEE 802.3AF PoE PD standard
- 10/100/1000Mbps Ethernet Port
- Connects to a switch for communication with encoders and decoders on the same network. - LAN2 (C):
- RJ-45 Ethernet jack without PoE.
-Used for 3rd-party controller controlling, configuring and managing system.
Mechanical
- Dimensions (W x H x D): - 3.67” × 1.02” × 5.46” (93mm × 26mm × 139mm)
- Weight: 0.84 lbs (0.38 kg)
- Mounting: Mounting ears included
- Operating Temperature: 32 to 104 °F (0 to 40 °C)
General
- Reset: Factory reset by pressing the button continuously for 5 seconds
- LEDs:
- Status : Illuminates Blue when IP controller is working properly; otherwise LED is off.
- Power : Illuminates Red when power is applied from PoE or external power supply. - Power: 12V 1A DC power supply with locking (included)
