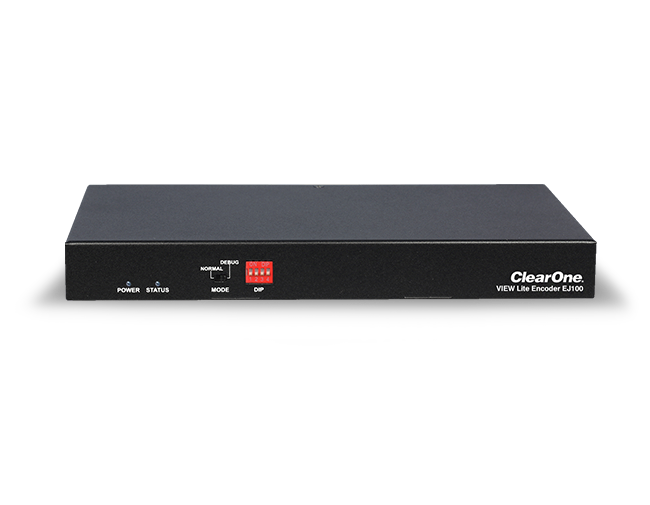

ClearOne VIEW Lite Encoder EJ100 | Single Channel AV Encoder

Most economical AV Encoder with 4:4:4 color space support for up to 4K30, 1080p60 resolutions; 4:2:0 color space support for up to 4K60 resolution Flexible power options with PoE and DC; Flexible control options with IR, RS232, USB HID

Codec: JPEG2000
Bandwidth: 850 Mbps
HDMI IN:
- X1
- Single Source HDMI input
- Resolution support up to 4K@24/30Hz 4:4:4, 8-bit, 4K@50/60Hz 4:2:0, 8 bit, with multi-channel audio
- HDCP 2.2 compliant
HDMI OUT
- X1
- A local HDMI loopback output (for video and audio) which is split from the HDMI Input that mirrors the resolution of the input

Audio In: 3.5mm jack for analog audio input that replaces the HDMI audio when plugged in
Audio Output: 3.5mm jack for analog audio output extract from HDMI

Serial RS232 Port: 3.5mm phoenix jack for the serial data transmission
IR Input: 3.5mm phone jack for IR receiving
IR Output: 3.5mm IR jack for IR transmitting
USB Host:
- USB Type-B connector
- Connect to PC or other HID controlled device for USB HID signal transmission

LAN / PoE:
- RJ-45 Ethernet jack with PoE support
- IEEE 802.3AF PoE PD standard
- 10/100/1000Mbps Ethernet Port
Reset:Factory reset by pressing the button continuously for 5 seconds
Modes:
- NORMAL: Encoder’s RS232 is working for serial data transmission
- DEBUG: Encoder’s RS232 is working for DEBUG
DIP: For quick setting of multiple units working in the same network without Controller or PC software
Power: 12V 1A DC power supply with locking (included)
