COMPATIBLE WITH
Enhance Your Cloud Collaboration
With Aura, Professionals can now Re-imagine their workspaces at Home
- CHAT® 150 USB speakerphone with advanced audio processing for a rich conferencing experience.
- Compatible with popular applications such as COLLABORATE® Space, Microsoft® Teams, WebEx™, Zoom™, Google® Meet™, and more.
- UNITE® 150 1080p30 PTZ camera with 12x optical zoom for high video quality no matter where the camera is installed in your home office.
- FREE COLLABORATE® Space lifetime subscription — ClearOne’s high quality, award winning cloud-based video collaboration application.
- Central USB hub for connecting to a network, dual displays, camera, audio endpoints, network, and other peripherals.

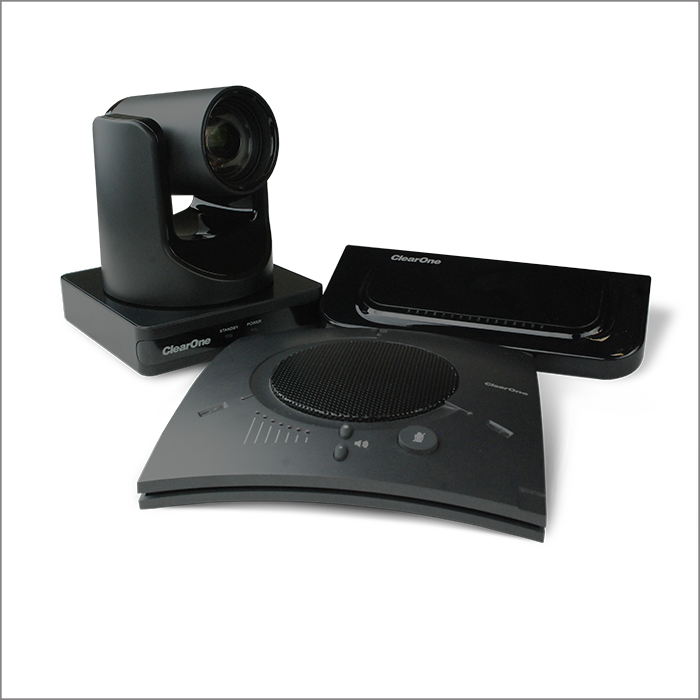

- AUR-3001-150 COLLABORATE® Versa 150
INCLUDES
- AUR-156-200 CHAT® 150 USB Speakerphone
- AUR-2100-004 UNITE® 150 PTZ HD camera
- AUR-3001-100 COLLABORATE® Versa Hub
- Camera remote control
- Two-year warranty with support and maintenance
- Free COLLABORATE® Space lifetime subscription
CHAT 150 SPEAKERPHONE
- Speaker
- Bandwidth: 190 Hz - 20 kHz
- Max output level: 85 dB SPL @ 1 meter
- Microphone
- Bandwidth: 100 Hz - 12 kHz
- Full-Duplex Acoustic Echo Cancellation (AEC)
- Noise Cancellation (NC)
- Automatic Level Control (ALC)
- COMPATIBILITY
- Windows 7 or higher
- MAC OS
- INPUT/OUTPUT INTERFACE
- USB Mini B port
- Version 2.0 compatible
- Keyed RJ-45 (8 conductor)
- CONTROLS
- Volume up
- Volume down
- Microphone mute
- POWER
- USB-powered
- 5 VDC @ 500 mA Maximum
- ENVIRONMENTAL
- Operating temperature: 41° F - 104° F (5° C - 40° C)
- MECHANICAL
- Dimensions: (W x D x H): 7.4 x 7.4 x 1.8” (188 x 188 x 46 mm)
- Weight: 1.17 lb (0.53 kg)

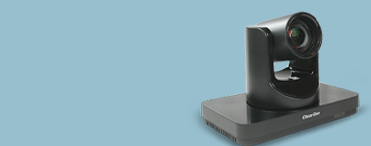

UNITE® 150 PTZ HD CAMERA
- VIDEO FORMATS: 1080p30, 1080p25, 720p30, 720p25
- Sensor: 1/2.7 inch, CMOS
- Effective pixel: 2.07M
- Scanning mode: Progressive
- Lens : 12x, f3.5 mm – 42.3 mm, f1.8 – f2.8
- Minimal illumination: 0.5 lux @ (f1.8, AGC ON)
- Shutter: 1/30S – 1/10000 S
- White balance: Auto, Indoor, Outdoor, One Push, Manual
- Backlight compensation: Supported
- Digital Noise Reduction: 2D & 3D
- Video S/N: ≥55 dB
- Horizontal angle of view: 72.5° – 6.9°
- Vertical angle of view: 44.8° – 3.9°
- Horizontal rotation range: ±170°
- Vertical rotation range: -30° – +90°
- Pan speed range: 1.7° – 100°/S
- Tilt speed range: 1.7° – 69.9°/S
- H & V FLIP: Supported
- Image freezing: Supported
- Number of presets: 255
- Installation: Stand Mount, upside-down mount
- INPUT/OUTPUT INTERFACE
- Audio interface: 1-CH 3.5 mm Audio Interface, Line In
- USB interface: 1 x USB3.0: type B Female jack
- Communication: 1 x Rs-232 in : 8-Pin Min din, Max distance: 30m, Protocols: VISCA/Pelco-D/Pelco-P
- 1x RS-232 Out: 8-Pin Min din, Max distance: 30M, Protocols: visca network use Only
- COMPATIBILITY
- Operating Systems: Windows 7, Windows 8, Windows 8.1, Windows 10, MAC OS, Linux
- Color System: YUV 4:2:2
- USB 2.0: 720P30 maximum
- NOTE: Use of USB 2.0 downgrades video quality. ClearOne does not recommend using USB 2.0 extenders.
- USB Video Communication: UVC 1.0 - UVC 1.5
- Audio on USB: Supported
- UVC PTZ: Supported
- POWER
- Power jack: JEITA type (DC In 12 V)
- Input voltage: DC 12
- Current consumption: 1.0 A (max)
- Power consumption: 12 W (max)
- ENVIRONMENTAL
- Operating temperature: +14° F–104° F (-10° C – 40° C)
- Storage temperature: -40° F – 140° F (-40° C – 60° C)
- MTBF: >30000h
- MECHANICAL
- Dimensions (W x D x H): 5.67 x 5.67 x 6.61” (144 x 144 x 168 mm)
- Weight: 2.0 lb (0.91 kg)
VERSA HUB
- 1x USB 3.0 (Type-B) for laptop (requires display link driver on laptop)
- 2x USB 3.0 (Type-A) for UNITE camera & CHAT Speakerphone
- 4x USB 2.0 ports
- 1x HDMI out
- 1x DVI out
SYSTEM REQUIREMENTS
- Windows 7 or higher
- MAC OS 10.7 or higher
MECHANICAL
- Weight: 11.25 lb (5.1 kg)
- Dimensions: 21 x 11.5 x 14.5” (533 x 292 x 368 mm)
